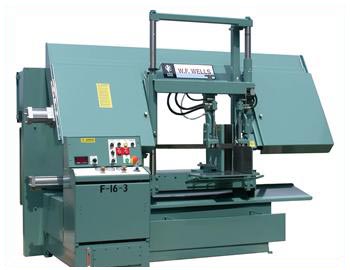

Model: F-1620-A-CNC
Year: New
Type: Hydraulic /CNC Control
SPECIFICATIONS:
Cutting Capacity:
Rounds
Max Height…… 16″
At 90 Degrees… 16″
Rectangles
Max Weight…… 20″
At 90 Degrees… 16″ x 20″
Blade Speed (VS)…… 60 – 500 RPM
Blade Size………… 1-1/4″ x .042″ – 15′
Work Height……….. 35″
Motor Size………… 7.5 HP-208/460V-3 Phs
Weight……………. 4000 Lbs
EQUIPPED WITH:
Fully Automatic CNC
Barfeed 0″-25″
Digital Membrane Screen Controls
(500)= Plus Job Selection
Machine Diagnostics
Automatic Keft Compensation
Unlimited Shuttle Indexes
Variable Blade Speed
Manual Blade Tension w/Indicator
Variable Vise Pressure
Out-Of-Stock Shutdown
1-1/4″ Bi-Metal Blade
Built In Coolant System
Blade Break/Stall Switch
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Air Hold Down, Saw & Vise
Electronic Chip Conveyor – Auger Type
20”W x 48” Discharge Work Table
6” Centers – Free Standing Roller Stock Conveyor
21’ x 5’ x 2500 LBS Capacity
21” x 10’ x 5000 LBS Capacity
COMMENTS: Mfg. In U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part !
Have A Technical Question !
CALL: IMCO At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change without notice
