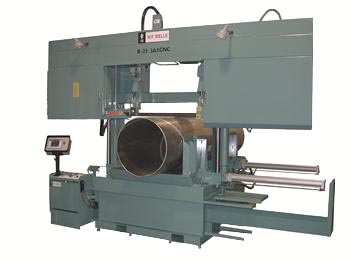

Model: B-25-3A3-CNC
Year: New
Type: Double Column/Fully Automatic
SPECIFICATIONS
Cutting Capacity:
Rounds
Max. Height….. 25.5”
At 90 Degrees… 25.5”
Rectangles
Max. Width…… 40”
At 90 Degrees… 25” x 40”
Blade Size:……….. 1-1/2″ x .050″ x 26′-6″
Blade Speed:(VS)…… 60-500 SFPM
Motor Size:……….. 15 HP – 208/460V – 3 Phs
Weight:…………… 11,000 Lbs
EQUIPPED WITH:
Double Column
Fully Automatic “CNC” Control Equipped with:
Digital “Touch Screen”
(500) Plus Jobs
Automatic Kerf Compensation
Machine Diagnostics
36” CNC Controlled Shuttle Vise Barfeed with up to 99.999” Part
Full Stroke Hydraulic Vises
Adjustable Vise Pressure
Spring Tensioned Carbide Blocks w/Rollers
Adjustable Hydraulic Down Feed (0-1000 LBS)
Hydraulic Blade Tension
Hydraulic Powered Blade Brush
Hydraulic Powered Guide Arm Positioning
Flood Coolant System
Variable Blade Speeds
Full Guarding
Operator Manual & Parts List
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
High Speed Drive & Guides (1-1/2” Blade) 500-3000 SFPM
Hydraulic Hold Down, Saw Vise
Hydraulic Hold Down Barfeed Vise
Hydraulic Chip Conveyor
40” x 56” Discharge Work Table
Outboard Vise
Outboard Vise w/Hydraulic Hold Down
40” x 5’ Manual Conveyor
40” x 10’ Manual Conveyor
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO At 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All prices subject to change with notice
