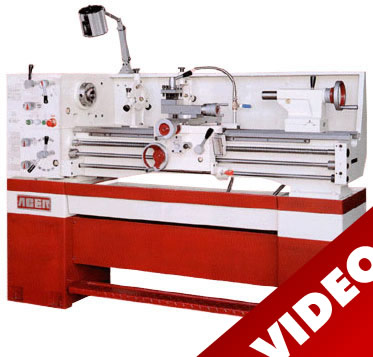

Model: “G”
Type: Tool Room Lathe
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed………… 13”
Swing Over Cross Slide…. 7-5/8”
Swing In Gap………….. 19-1/4”
Dist. Between Centers:…. 40”
Spindle Nose………….. D1-4
Spindle Hole………….. 1-1/2”
Bed Width…………….. 7-1/2”
Spindle Speeds(9)……… 80 – 2000 RPM
Threading…………….. Inch/Metric
Motor Size……………. 3 HP – 220/440V – 3 Phs
Tailstock Taper……….. #3 MT
Weight……………….. 1540 Lbs
Dimensions……………. 75″(l) x 30″(w) x 58″(h)
EQUIPPED WITH:
6″ – 3 Jaw Chuck
8″ – 4 Jaw Chuck
(4) Way Toolpost
Coolant System
Full Length Splash Guard
Chip Tray
(0.78″ – 1.97″) Follow Rest
(0.78″ – 2.15″) Steady Rest
10″ Face Plate
Halogen Work Light
Tools w/Tool Box
Operation Manuals
MACHINE FEATURES:
Mfg. in Tawain
1-1/2″ Spindle Hole
Hardened & Ground Headstock Gears
Hardened & Ground Bed Ways
Main Spindle Equipped w/(2) Precision Bearings
Tailstock Barrel (Inch-Metric)
Control Switch (Electro-Magnetic)
Foot Brake
Jog Button … Emergency Stop Button
“OPTIONAL ACCESSORIES” AVAILABLE … P.O.R.
8″ – 3 Jaw “Set Tru ” Chuck
8″ – 6 Jaw “Set Tru” Chuck
Micro Carriage Stop
(4) Position Carriage Stop
Taper Turning Attachment
Lever Collet Attachment
5C Collet Set (1/8″ – 1-1/8″ x 1/16″)
“Aloris Type ” Quick Change Toolpost w/(6) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0″- 1/2″Capacity)
#3 MT Live Center
Newall Digital Readout
