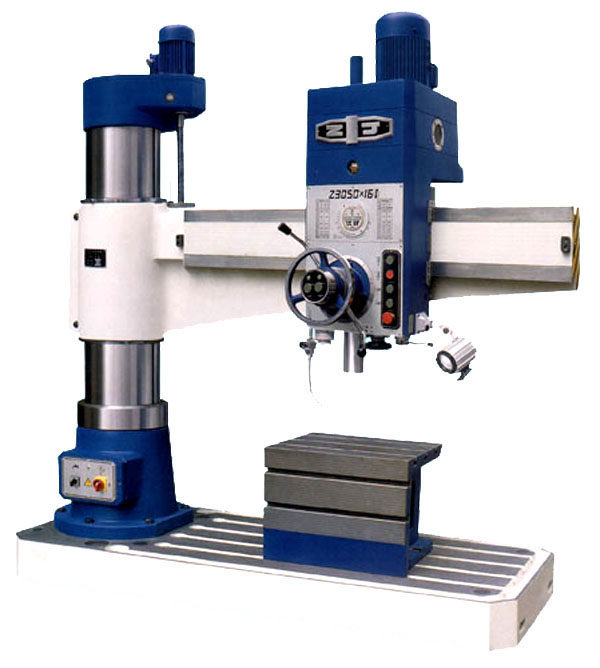

22" x 96"  (8') ACRA ... RADIAL DRILL
Click to enlarge
Home Drills - New & Used Radial Drills 22″ x 96″ (8′) ACRA … RADIAL DRILL
12" x 48" (4') SHARP ... RADIAL DRILL
12" x 48" (4') SHARP ... RADIAL DRILL
Back to products
13" x 40" DYNAMIC (ACER) ... LATHE 1-1/2" SPINDLE HOLE
13" x 40" DYNAMIC (ACER) ... LATHE 1-1/2" SPINDLE HOLE

22″ x 96″ (8′) ACRA … RADIAL DRILL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: TPR-2500
Type:  Radial
Year: New

SPECIFICATIONS:

Drilling Capacity:
     Mild Steel …….. 3.15” Hole
     Cast Iron ………. 3.93” Hole
Tapping Capacity:
     Mild Steel …….. 2.56” Hole

Column Diameter:………. 22”
Dist Column To Spindle:… 96” (8’)
Dist Spindle To Base:….. 78.74”
Spindle Travel:……….. 17.7”
Spindle Taper:………… #6 MT
Spindle Speeds(16)…….. 16-1250 RPM
Motor Size – Voltage:….. 10 HP – 220/440V – 3 Phs
Base Dimension:……….. N/A
Weight:………………. 24,200 Lbs
Dimensions……………. 147″L x 55″W x 51″H

EQUIPPED WITH:

Power Clamping – Drill Head To Arm
Power Clamping – Arm To Column
Hydraulic Pre Select Of Speeds & Feeds
Auto Tool Ejector
H & G Arm Slideways & Gears
Double Wall Column
Spindle Brake
Spindle Reverse Control
Counterweight Balance Of Spindle
“Friction Type” Disc Clutch
Note: Absorbs Impact Force …
Protect Gears In Transmission
Elevating “Safety Device” For Arm
Note: Prevents Arm From Falling Down
Automatic Depth Stop
Auto Lube
Box Table
T-Slotted Base
Coolant System
Work Light
Tool Box w/Tools
Foundation Bolts

“USA” DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL:  IMCO at 614-914-5087

TERMS:  Check w/Order

F.O.B.:  Columbus, Ohio

All prices subject to change without notice.

SKU: 8158 Category: Radial Drills
