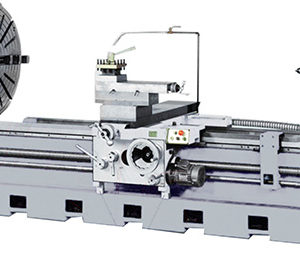

40" x 120" SHARP ... LATHE 6" SPINDLE HOLE
40" x 120" SHARP ... LATHE 6" SPINDLE HOLE

17″ x 78″ SHARP … RADIAL DRILL

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: RD-2000
Type:  Hydraulic
Year: New

SPECIFICATIONS:

Arm Length……………. 48”
Column Diameter……….. 17”
Dist. Column To Spindle… 78.74”
Dist Spindle to Base…… 15.34″ – 72.83″
Spindle Speeds(12)…….. 40 – 1920 RPM
Spindle Travel………… 14.57″
Spindle Taper…………. #5 MT
Spindle Motor – Voltage… 7.5 HP – 220/440V – 3 Phs
Arm Elevating Motor……. 3 HP
Base Dimension………… 115” x 45” x 10″
Weight……………….. 15,620 Lbs
Dimensions……………. 130″L x 59″W x 123.6″H

Drilling Capacity:
Mild Steel……………. 2-1/4″
Cast Iron…………….. 2-5/8″

Tapping Capacity:
Mild Steel……………. 2″
Cast Iron…………….. 2-3/8″

Boring Capacity:
Mild Steel……………. 5″
Cast Iron…………….. 7-3/8″

STANDARD EQUIPMENT

40″ x 32″ x 20″ Box Table
Coolant System
Work Light
Tool Box w/Tools
Manuals

MACHINE FEATURES

Hardened & Ground Arm Slideways & Gears
Controlled Arm Elevation
Built in Automatic Tool Ejector
Safety Device Prevents Arm from Dropping

OPTIONAL ACCESSORIES: P.O.R.

Tilting Table (32” x 28” x 24”)
Auto Reverse Tapping

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject change without notice
