13" x 19" ELLIS ... BAND SAW
Click to enlarge
Home Saws - New & Used Horiz. Band Saws - New & Used 13″ x 19″ ELLIS … BAND SAW
14" X 40" DYNAMIC (ACER) ... LATHE1-9/16" SPINDLE HOLE
14" X 40" DYNAMIC (ACER) ... LATHE1-9/16" SPINDLE HOLE
Back to products
13" x 22" ELLIS ... BAND SAW
13" x 22" ELLIS ... BAND SAW

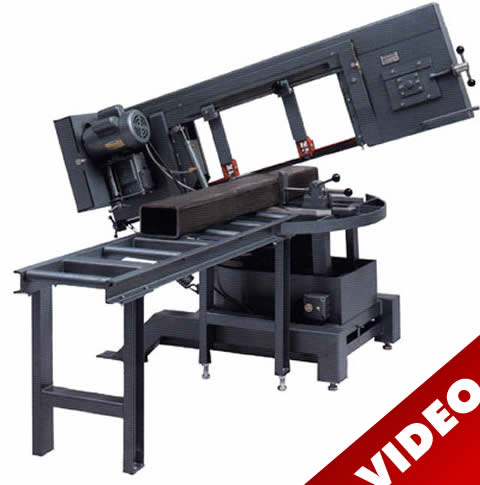

13″ x 19″ ELLIS … BAND SAW

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: 3000 … Variable Speed
Type: Scissors “Swivel Head”
Year: New

SPECIFICATIONS:

Cutting Capacity:
   Round:
      Max. Height:…. 13.5”
      at 90 Degrees… 13.5”
      at 45 Degrees… 12.75” (L & R)
   Rectangle:
      Max. Width…… 19”
      at 90 Degrees… 13.5” x 19”
      at 45 Degrees… 13.5” x 12” (L & R)
Blade Size:……….. 1” x .035” x 13’6″
Blade Speed:………. (V.S.) 80 – 220 FPM
Motor Size:……….. 2 HP – 220V – 1 Phs
Weight:…………… 1000 Lbs
Dimensions (LxWxH)…. 81″ x 39″ x 50″

EQUIPPED WITH:

Head Swivels 45 Left or Right
Stock Remains inOne Position for all Cuts
One Step Conversion to Vertical Band Saw
Built-In Precision Protractor
Automatic Shut-Off Switch
Hydraulic Feed Control
Replaceable Aluminum Table Plate
Wheels on Base for Portability

OPTIONAL ACCESSORIES AVAILABLE … P.O.R.

Stock Gauge w/Micro Adjuster
5′ Heavy Duty Stock Stand w/(4) Rollers
Single Stock Support Stand w/(1) Roller Moveable
Air System (Cleans & Cools Blade)

COMMENTS:  Mfg. in USA !

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL: IMCO at 614-914-5087

TERMS: Check w/Order

All prices subject to change without notice





SKU: 4040 Category: Horiz. Band Saws - New & Used
