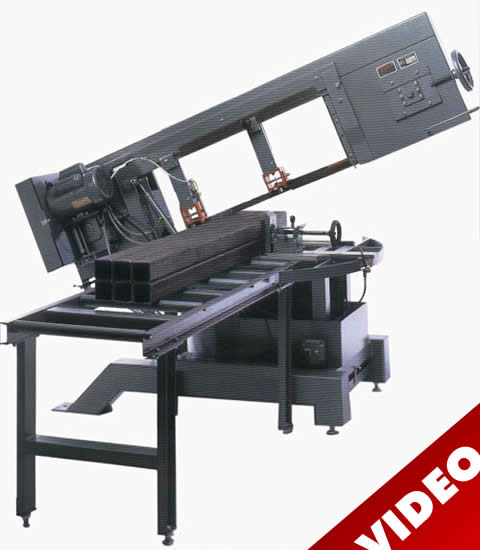

13″ x 22″ ELLIS … BAND SAW

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: 4000 … Variable Speed
Type: Scissors “Swivel Head”
Year: New

SPECIFICATIONS:
CUTTING CAPACITY:
   Round:
      Max. Height….. 13.5”
      at 90 Degrees… 13.5”
      at 45 Degrees… 13.5 (L & R)
   Rectangle:
      Max. Width…… 22”
      at 90 Degrees… 13” x 22”
      at 45 Degrees… 13.5” x 14” (L & R)
Blade Size:……….. 1-1/4″ x .042″ x 15’
Blade Speed:………. (VS) 80 – 220 FPM
Motor Size:……….. 2 HP-220V-3 Phs
Weight:…………… 1250 Lbs
Dimensions (LxWxH)…. 90″ x 45″ x 50″

EQUIPPED WITH:

Head Swivels 45 Left or Right
Stock Remains inOne Position for all Cuts
One Step Conversion to Vertical Band Saw
Built-In Precision Protractor
Automatic Shut-Off Switch
Hydraulic Feed Control
Replaceable Aluminum Table Plate
Wheels on Base for Portability

OPTIONAL ACCESSORIES AVAILABLE … P.O.R.

Stock Gauge w/Micro Adjuster
5′ Heavy Duty Stock Stand w/(4) Rollers
Single Stock Support Stand w/(1) Roller Moveable
Air System (Cleans & Cools Blade)

COMMENTS:  Mfg. in USA !

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL: IMCO at 614-914-5087

TERMS: Check w/Order

All prices subject to change without notice

SKU: 4041 Category: Horiz. Band Saws - New & Used
