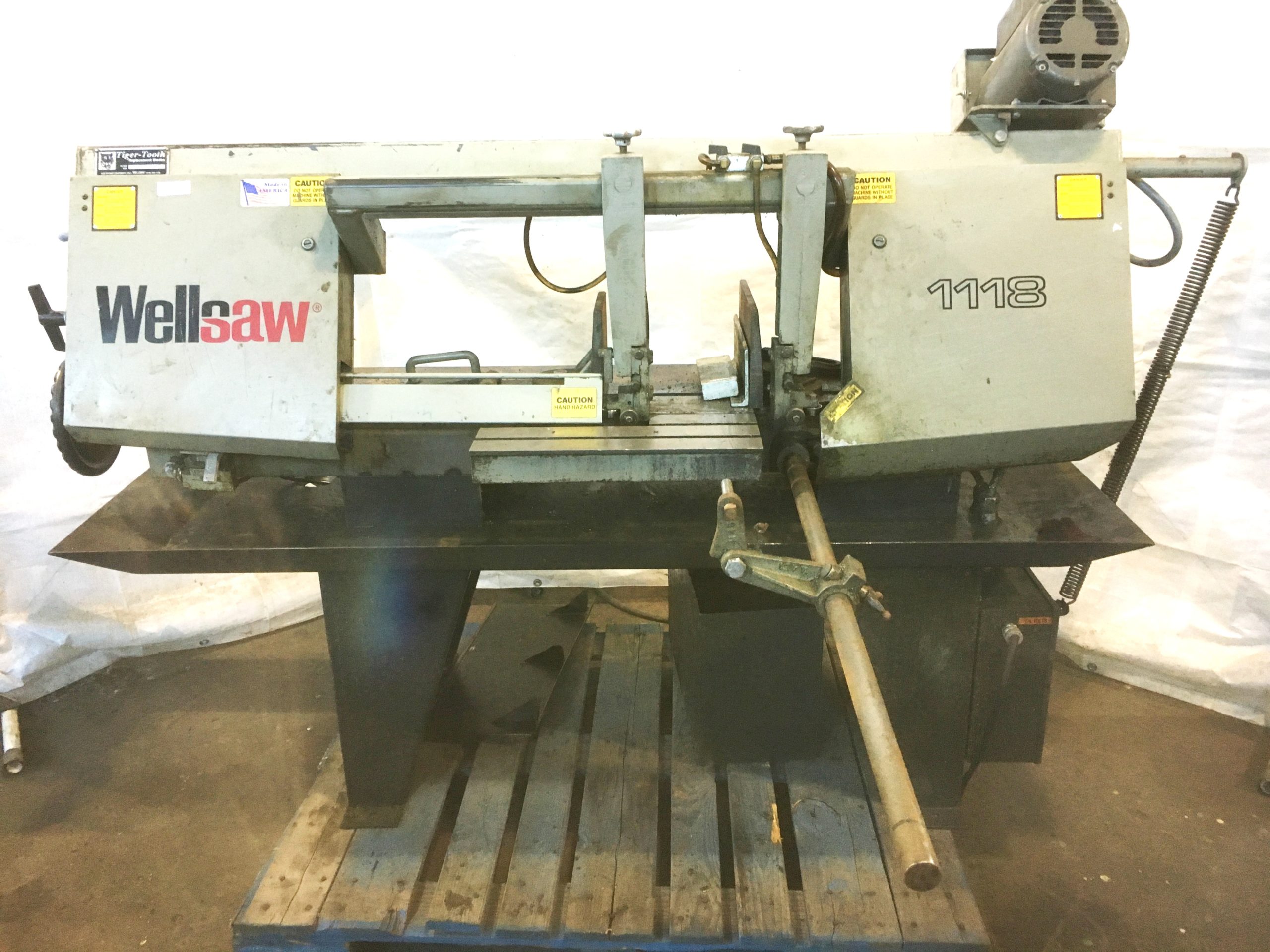

13″ x 18″ WELLSAW … HORIZONTAL BANDSAW

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: 1318 … Variable Speed

Type: Scissor … Manual

Year:

SPECIFICATIONS:

Cutting Capacity
   Rounds
      (Max. Height)… 13”
      at 90 Degrees… 13”
      at 45 Degrees… 11-1/2”
   Rectangles
      (Max. Width)…. 18”
      at 90 Degrees… 13” x 18”
      at 45 Degrees… 11” x 9-1/2”
Blade Size:……….. 1” x .035” x 12’ 6”
Blade Speed(VS)……. 70 – 375 SFPM
Motor Size:……….. 2 HP-115V-1Phs
Weight:…………… 955 Lbs

EQUIPPED WITH:

(2) Extra Blades
Variable Hydraulic Feed
Combination Reduction Gearbox & Perimeter
Ring Gear Blade Drive
Infinitely Variable Blade Speed
Overload & Under Voltage Protection
Auto Shut Off – End of Cut
OSHA Blade Guarding
45 Degree Swivel Visel
Coolant System w/Coolant
Powered Blade Brush
Adjustable Stock Stop

OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)

15″ Wide Roller “Mid Duty” (250#) Stock Stand
6″ Wide Roller “Heavy Duty” (1000#) Stock Stand
12″ Wide Roller “Heavy Duty” (1000#) Stock Stand
5’ x 18″ Roller Conveyor
5’ x 24″ Roller Conveyor
10’ x 18″ Roller Conveyor
10’ x 24″ Roller Conveyor

 COMMENTS:  Mfg. in U.S.A.

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL: Machinery Connection at 614-914-5087

F.O.B.: Columbus, Ohio

TERMS: Check w/Order

All prices subject to change without notice
