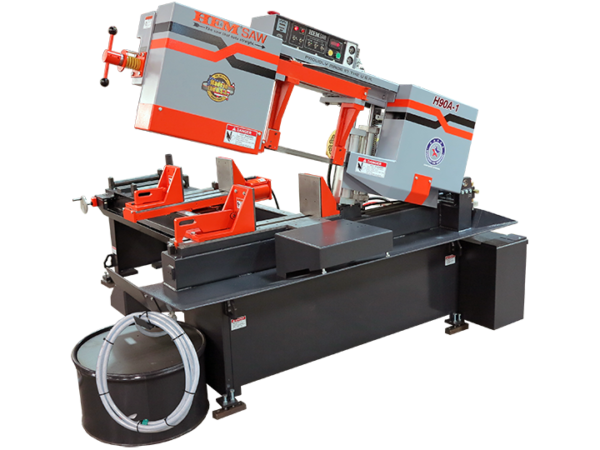

Model: H90A-1 … Automatic
Year: New
SPECIFICATIONS:
Round at 90……… 12″
Rec. or Sq. at 90… 12.75″ x 12.75″
Work Height………
Blade Size………. 1″ x .035″ x 12’10”
Blade Speed……… (V.S.) 66 – 300 FPM
Motor Size………. 3 HP – 220V / 440V – 3 Phs
Air Requirement….. 85 psi, 4 – 6 cfm
Weight………….. Lbs
EQUIPPED WITH:
Control Console on Top of Saw – Bi-Function Mechanical Digital Readout & Alignment Bar on Bar-Feed
Automatic 0 – 24″ Stroke Bar Feed (1 Index)
Variable Frequency Controller
Air Machine (85 PSI, 4-6 CFM Minimum Air Requirement)
18″ Discharge Support
220V/3PH or 440V/3PH Electrical Motor Requirement– This is Not a Dual Voltage Machine
Adjustable Main & Feed Vise
Two Hold Down Fixtures for Vises
Manual Guide Arm Adjustment
Adjustable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Feed Rate & Cutting Force
Built-In Coolant System w/ Wash-Down Hose
MACHINE FEATURES:
OPPIONAL ACCESSORIES: P.O.R.
3rd Holding Vise on Feed
Interlocking Vise Jaws
Reduced Capacity Top Clamp – Main Vise
Reduced Capacity Top Clamp – Feed Vise
24″ Solid Discharge Table
Spray Mist Lubrication – Flood/Mist Selector Switch
Single-Phase Voltage
5′ x 18″ Idle Non-Panned Roller Stock Table
10′ x 18″ Idle Non-Panned Roller Stock Table
COMMENTS: Mfg. In U.S.A.
