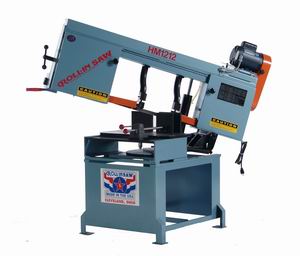

Model: HW-1212
Type: Swivel Head
Year: New
SPECIFICATIONS:
Cutting Capacities:
Round
Max. Height….. 12”
at 90 Degrees… 12”
at 60 Degrees… 6″
at 45 Degrees… 6”
Rectangle
Max. Width…… 12”
at 90 Degrees… 12” x 10”
Square
at 60 Degrees… 6
at 45 Degrees… 9”
Blade Size:……….. 1” x .035” x 140”
Blade Speed:(3)……. 70 – 140 – 270 SFPM
Motor Size:……….. 1 HP – 110/220V – 1 Phs
Weight:…………… 700 Lbs
EQUIPPED WITH:
Manual “Quick Acting” Vise
60 Degrees Double Miter Head (LT & RT)
Hydraulic Cylinder for Controlled Feed
Magnetic Starter
Automatic Shutoff
Blade Cleaning Brush
Coolant Pump
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
(4) Casters
COMMENTS:
A “U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Columbus, Ohio
TERMS: Check w/Order
All Prices Subject To Change Without Notice
