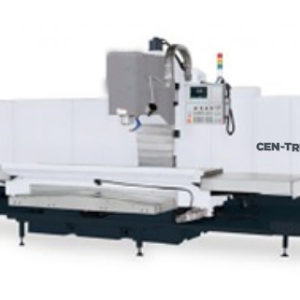

Model: M-1320
Type: VMC
Year: New
SPECIFICATIONS:
Table Size……………… 27.5″ x 59.8″
Table Weight Cap………… 3300 Lbs
Table Travel………..(X).. 52″
Cross Travel………..(Y).. 28″
Head Travel…………(Z).. 27.5″
Rapid Traverse………….. 640/480 IPM
Spindle Nose To Table Top… 5.9″ – 33.4″
Spindle Taper…………… CAT 40
Spindle Speed…………… 8000 RPM
Auto Tool Changer……….. (20) Station (Armless)
Motor Size……………… 20 HP – 220V – 3 Phs
Weight…………………. 18,700 Lbs
Control Type……………. Centroid M-400
Dimensions (LxWxH)………. 155″ x 113″ x 116″
EQUIPPED WITH:
Automatic Tool Changer (20) Station (Armless)
Coolant System
Air Blast System
Halogen Work Light
Chip Auger (Screw Type)
Chip Tray
Auto Lube System
Spindle Chiller
Full Metal Enclosure
Leveling Bolts & Pads
Tool Box w/ Tools
Operations Manual
MACHINE FEATURES:
Centroid M 400 Control … (Mfg. In U S A)
(3) Axis (Simultaneous Contouring)
Excellent Quality – “High Precision”
“Extremely” Rigid – Meehanite Casting
(4) Box Ways – “Y” Axis
X, Y & Z Axis … Hardened & Ground Bed Ways
Turcite Coated Ways
Class “7” Spindle Bearings
Metal Telescopic Way Covers (X, Y & Z Axis)
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
CENTROID CONTROL:
Mfg. In USA
(3) Axis (Simultaneous Contouring)
Full Conversational (Shop Floor Programming)
& “ G” Code (Fanuc) Programming
15” Color Monitor
RS-232 & Ethernet Parts
(1) GB Solid State Hard Drive
2000 Blocks (per Second) Look-A Head Speed
OPTIONAL ACCESSORIES:
OPTIONAL ACCESSORIES (MILL)
(52) pc. Clamp Kit
Mist Coolant System
(20) Pc. Cat 40 Retention Knobs
6” (Kurt Type) Vise w/ Swivel Base
6” Precision Kurt Vise
Coolant Thru Spindle
Upgrade to 10,000 RPM
SOFTWARE OPTIONS (CENTROID CONTROL)
Rigid Tapping
User Definable Macros & Sub Programs
Compression Tapping
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software
Coordinate System Rotation
DXF In, CAD Drawing Input Software
Cutter Compensation
Intercon Off-Line Conversational Program (For Desktop Pc)
Engraving Software
DIGITIZING & PROBING:
2D & 3D Digitizing Software
(Includes Mold Magic Software)
DP-4 Probing Package
Tool Room Package:
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORIES:
(100) Step MPG
Installation & Set-Up… (Per Day)*
Control Training…….. (Per Day)*
**Plus Travel Expenses
COMMENTS: Control Mfg. In USA
