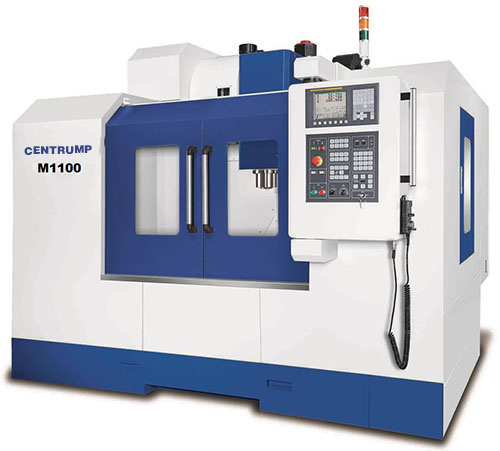

Model: M-1100
Type: VMC
Year: New
SPECIFICATIONS:
Table Size……………… 23.6″ x 49.6″
Table Weight Cap………… 2200 Lbs
Table Travel………..(X).. 43″
Cross Travel………..(Y).. 24″
Head Travel…………(Z).. 27.5″
Rapid Traverse………….. 640/480 IPM
Spindle Nose To Table Top… 5.5” – 33″
Spindle Taper…………… CAT 40
Spindle Speed…………… 8000 RPM
Auto Tool Changer……….. (20) Station (Armless)
Motor Size……………… 15 HP – 220V -3 Phs
Machine Weight………….. 14,300 Lbs
Control Type……………. Centroid M 400
EQUIPPED WITH:
STANDARD EQUIPMENT
Automatic Tool Changer (30) Station (Arm Less)
Screw Type Chip Auger
Power Chain
Coolant System
Air Blast System
Halogen Work Light
Auto Lube System
Spindle Oil Cooler
Full Metal Enclosure
ENCODER SET
Tool Box w/ Tools
Operations Manual
MACHINE FEATURES:
Centroid M 400 Control … (Mfg. In U S A)
(3) Axis Simultaneous Contouring)
Excellent Quality – “High Precision”
“Extremely” Rigid – Meehanite Casting
(4) Box Ways – “Y” Axis
X, Y & Z Axis … Hardened & Ground Bed Ways
Turcite Coated Ways
Class “7” Spindle Bearings
Metal Telescopic Way Covers (X, Y & Z Axis)
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
CENTROID CONTROL:
Mfg. In USA
(3) Axis (Simultaneous Contouring)
Full Conversational (Shop Floor Programming) & “ G” Code (Fanuc) Programming
15” Color Monitor
RS-232 & Ethernet Parts
(1) GB Solid State Hard Drive
2000 Blocks (per Second) Look-A Head Speed
OPTIONAL ACCESSORIES:
OPTIONAL ACCESSORIES (MILL)
(52) pc. Clamp Kit
Mist Coolant System
Upgrade From 8,000 RPM To 10,000 RPM
28 KVA Transformer (440V – 480V)
(20) Pc. Cat 40 Retention Knobs
6” (Kurt Type) Vise w/ Swivel Base
6” Precision Kurt Vise
Coolant Thru Spindle
SOFTWARE OPTIONS (CENTROID CONTROL)
BCD Tool Change Output
Rigid Tapping
User Definable Macros & Sub Programs… Standard
Compression Tapping… Standard
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software
Coordinate System Rotation
DXF In, CAD Drawing Input Software
Cutter Compensation
Intercon Off-Line Conversational Program (For Desktop Pc)
Engraving Software
DIGITIZING & PROBING
2D & 3D Digitizing Software (Includes Mold Magic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Tool Room Package:
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORIES:
(100) Step MPG
Installation & Set-Up…(Per Day)
Control Training…(Per Day)
Plus Travel Expenses
COMMENTS: Control Mfg. In USA
“USA” IMPORTER DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
