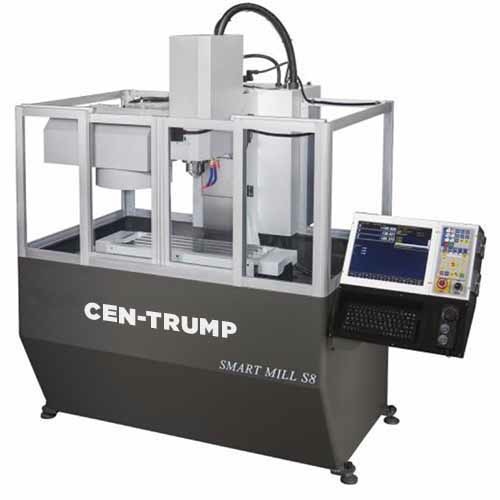

Model: S-8
Type: VMC
Year: New
SPECIFICATIONS:
Table Size…………… 9.45” x 32”
Table Weight Cap……… 220 Lbs
Table Travel……..(X).. 15.37”
Cross Travel……..(Y).. 9.45”
Head Travel………(Z).. 13.75”
Rapid Traverse……….. Yes
Spindle Nose-Table Top… 1.18” – 14.95”
Spindle Taper………… BT 30
Spindle Speed(V.S.)…… 8000 RPM
Auto Tool Changer…….. (8) Stations
Motor Size…………… 1.5 HP – 230V – 3 Phs
Weight………………. 2640 Lbs
Dimensions…………… To be Advised
Control Type…………. Centroid M-39
STANDARD EQUIPMENT
(3) Axis
Centroid M 39 CNC Control
Conversational Programming
15” Color LCD Monitor
Cutter Compensation
Drilling Cycles
Compression Tapping
User Definable Macros & Sub Programs
4th Axis Software
Rigid Tapping
Central Lubricaqtion System
Coolant System
Liner Guide Ways
Halogen Work Light
Splash Guard
Leveling Bolts & Pads
Tool Box w/Tools
MACHINE FEATURES
(3) Axis
Programable Spindle Speeds
Linear Guide Ways
(8) Station Automatic Tool Changer
(4) Box Ways
Telescopic Way Covers
Bed Ways – Turcite Coating
Meehanite Casting
“Double Nut” – Precision Ball Screws
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
OPTIONAL ACCESSORIES AVAILABLE
6” IMCO (Kurt Type) Vise
6” Precision Kurt Vise
(52) PC. Clamping Kit
Auto Mist Coolant System
Upgrade To 3 HP Motor
SOFTWARE OPTIONS (CENTROID CONTROL)
Compression Tapping
User Definable Macros & Sub Programs
Cutter Compensation
4th Axis Software
Mutiplework Coordnate System
Unlimited Part Program Size
Coordinate System Rotation
Scaling & Mirroring
DXF In, CAD Drawing Input Software
Engraving Software
DIGITIZING & PROBING
DP-4 Probing Package
2D & 3D Digitizing Software
(Includes Mold Majic Software)
TT-1 Tool Touch Off Kit
Tool Room Package
DP-4-Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORIES
(100) Step MPG
Installation & Set-Up / Control Training
Plus Travel Expenses
COMMENTS: Control Mfg. In U.S.A.
IMPORTER – PARTS & SERVICE CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
