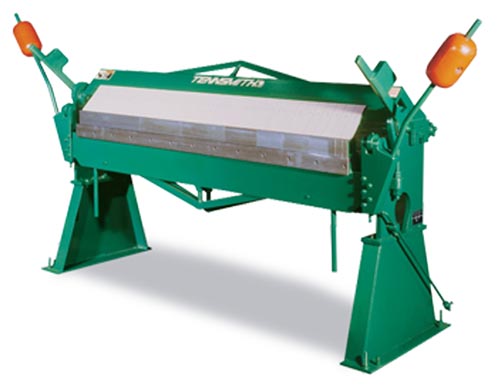

Model: HBT-48-12
Type: Heavy Duty Box & Pan
Year: New
SPECIFICATIONS:
Bed Length ………………………. 48”
Maximum Lift of Beam………………. 1-1/2″
Front To Rear Beam Adjustment………. 1/2”
Maximum Box Depth…………………. 4”
Maximum Reverse Bend………………. 5/8”
Minimum Flange In Capacity Material…. 1”
Top Segmented Tooling Width…….. 1”, 1.5”, 4”, 6”, 8”, 12” & 20”
Lower Segmented Tooling Width…… 1”, 1.5”, 6”, 8”, 12”, 20”
Bending Beam Tooling Segments…… 1”,1-1/2”,6”,8”,12”,20”
Weight …………………………… 1750 Lbs
Dimensions (LxWxH)…………………. 72″ x 36″ x 53″
CAPACITIES:
Mild Steel ……. 12 ga
With Bending Angle Removed
Mild Steel ……. 16 ga
Stainless …….. 16 ga
Aluminum ……. 10 ga
EQUIPPED WITH:
Floor Model
(2) Counter Weights
Welded Steel Construciton
Removable Apron Angle
COMMENTS: Mfg In the U.S.A.
