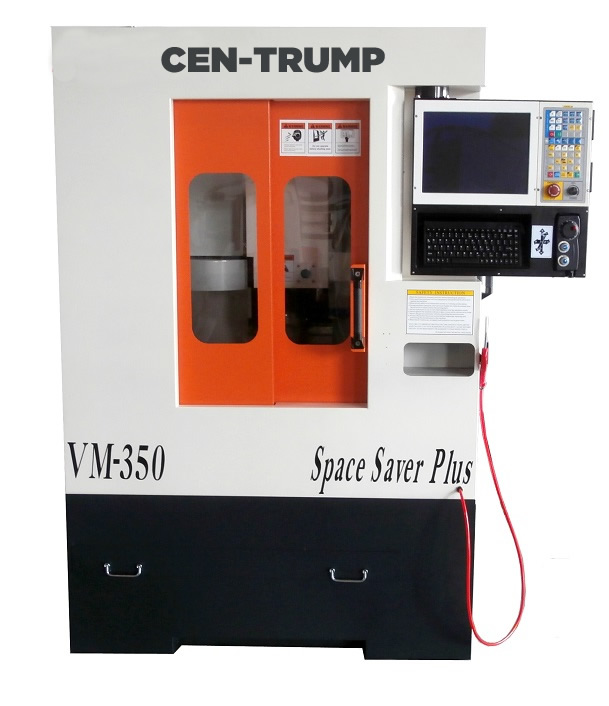

X=13.7" - Y=9.8" - Z=11.8" CEN-TRUMP ... VMC
Click to enlarge
Home Milling Machines - New and Used VMC's New & Used X=13.7″ – Y=9.8″ – Z=11.8″ CEN-TRUMP … VMC
6" AMERA-SEIKI ... SLANT BED LATHE
6" AMERA-SEIKI ... SLANT BED LATHE
Back to products
4.3" SUMMIT ... ROTARY TABLE
4.3" SUMMIT ... ROTARY TABLE

X=13.7″ – Y=9.8″ – Z=11.8″ CEN-TRUMP … VMC

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: VM-350
Type: VMC
Year: New



SPECIFICATIONS:



Table Size…………… 9.8” x 15.7”

Table Weight Cap……… 140 Lbs

Table Travel……..(X).. 13.7”

Cross Travel……..(Y).. 9.8”

Head Travel………(Z).. 11.8”

Rapid Traverse……….. Yes

Spindle Nose-Table Top… 2.7” – 14.5”

Spindle Taper………… BT 30

Spindle Speed (V.S.)….. 10,000 RPM

Auto Tool Changer…….. (8) Station Armless

Motor Size…………… 3 HP – 230V – 3 Phs

Weight………………. 2640 Lbs
Dimensions…………… To be Advised

Control Type…………. Centroid M-400i



EQUIPPED WITH:

Centroid M-M-400i CNC Control

Conversational Programming
15” Color LCD Monitor
Graphics Math Help
Cutter Compensation
Compression Tapping
User Definable Macros & Sub Programs
4th Axis Software
Drilling Cycles

Total Enclosure
Rigid Tapping
Central Lubrication System
Coolant System
Air Blast, Coolant Flush Gun
Halogen Work Light
Splash Guard
Leveling Bolts & Pads

OPTIONAL EQUIPMENT:

6” IMCO (Kurt Type) Vise
6” Precision Kurt Vise
(52) pc. Clamping Kit
Auto Mist Coolant System
Oil Skimmer
Upgrade to 5 HP
Upgrade to 30,000 RPM, 5 HP & Spindle Chiller

SOFTWARE OPTIONS (CENTROID CONTROL)

Compression Tapping
User Definable Macros & Sub Programs
Cutter Compensation
4th Axis Software
Multiple Work Coordinate System
Unlimited Part Program Size
Coordinate System Rotation
Scaling & Mirroring
DXF In, CAD Drawing Input Software
Engraving Software
Rigid Tapping

DIGITIZING & PROBING

DP-4 Probing Package
2D & 3D Digitizing Software (Includes Mold Magic Software)
TT-1 Tool Touch Off Kit
Tool Room Package

DP-4-Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System

ACCESSORIES:

(100) Step MPG
Installation & Set-Up / Control Training… (Per Day) *Plus Travel Expenses

COMMENTS:  Control Mfg. In U.S.A.



IMPORTER – PARTS & SERVICE CENTER

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087



F.O.B. Location



TERMS:  Check w/Order



All prices subject to change without notice



SKU: 12290 Category: VMC's New & Used
