X=47" - Y=17" - Z=22" MAGNA ... VERTICAL MILL
Click to enlarge
Home Milling Machines - New and Used Vertical Mills ... Heavy Duty X=47″ – Y=17″ – Z=22″ MAGNA … VERTICAL MILL
X=50" - Y=22" - Z=24" CEN-TRUMP ... CNC MILL
X=50" - Y=22" - Z=24" CEN-TRUMP ... CNC MILL
Back to products
14" x 40" TRUMP ... LATHE 1-9/16" SPINDLE HOLE
14" x 40" TRUMP ... LATHE 1-9/16" SPINDLE HOLE

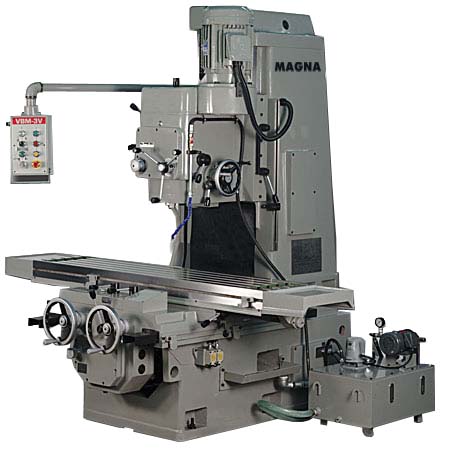

X=47″ – Y=17″ – Z=22″ MAGNA … VERTICAL MILL

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: KMA-2
Type:  Bed Mill
Year: New

SPECIFICATIONS:

Table Size……………. 18” x 75”
Longitudinal Travel..(X).. 47”
Cross Travel………(Y).. 17-11/16”
Vertical Travel……(Z).. 21”
Head Travel…………… 21”
Spindle to Table………. 4” – 26”
Spindle Center to Column.. 18″
Spindle Taper…………. #50
Spindle Speeds(12)…….. 45 – 1500 RPM
Motor Size – Voltage…… 15 HP – 220/440V – 3 Phs
Weight……………….. 11,500 Lbs
Dimensions (LxWxH)…….. 150″ x 88″ x 103″

EQUIPPED WITH:

Pendant Control
Coolant System
Auto Lubrication System
Draw Bar
Tool Box w/Tools

MACHINE FEATURES

Geared Head (H & G)
“Heavy Duty” Meehanite Castings
H & G Box Ways
Table Backlash Eliminate (Adjustable)
(3) Way Powerfeed
(3) Way Rapid Traverse
#50 Spindle Taper
Spindle Head (Designed for Precision Boring)
“Manual” Course & Fine Feed

OPTIONAL ACCESSORIES:

Power Draw Bar w/Foot Pedal
6” Kurt – Type Vise
6” Kurt Vise w/Swivel Base
Halogen Work Light
(3) Newall Axis Digital Readout

“USA”  IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 5591 Category: Vertical Mills ... Heavy Duty
