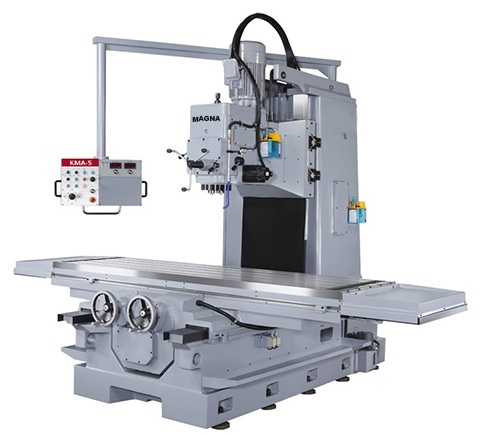

Model: KMA-5
Type: Bed Mill
Year: New
SPECIFICATIONS:
Table Size……………. 29.5” x 106.3”
Longitudinal Travel..(X).. 78.74”
Cross Travel………(Y).. 31.5”
Vertical Travel……(Z).. 27.56”
Head Travel…………… 27.56”
Dist. Spindle to Table…. 2.75” – 30.3”
Spindle Taper…………. #50
Spindle Speeds(VS)…….. 45 – 1500 RPM
Motor Size – Voltage…… 20 HP – 220V or 440V – 3 PHS
Table Weight Capacity….. 2640 Lbs
Weight……………….. 28,650 Lbs
Dimensions (LxWxH)…….. 121″ x 224.2″ x 115″
EQUIPPED WITH:
Pneumatic Power Locks on Spindle, Table & Saddle
Variable Speed Feed Rate on Table & Saddle
Automatic Lubrication on Vertical Slide Ways
Pendant Control
Coolant System
Draw Bar
Tool Box w/Tools
MACHINE FEATURES
Hardenened & Ground Geared Head
“Heavy Duty” Meehanite Castings
Hardenened & Ground Box Ways
Table Backlash Eliminate (Adjustable)
(3) Way Powerfeed
(3) Way Rapid Traverse
#50 Spindle Taper
Spindle Head (Designed for Precision Boring)
“Manual” Course & Fine Feed
OPTIONAL EQUIPPED:
Power Draw Bar w/Foot Pedal
6” Kurt – Type Vise
6” Kurt Vise w/Swivel Base
Halogen Work Light
Newall (3) Axis Digital Readout
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need A Part ?
Have A Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
