Model: #5
Type: Heavy Duty Bed Mill
Year: New
SPECIFICATIONS:
Table Size……………. 19.6″ x 86.6″
Longitudinal Travel..(X).. 59″
Cross Travel………(Y).. 23.6″
Vertical Travel……(Z).. 27.6″
Spindle Motor – Voltage… 15 HP – 220V – 3 Phs
Spindle Nose To Table….. 3.9″ – 31.5″
Spindle Speeds………… (12) 45 – 1500 RPM
Spindle Taper…………. #50
Quill Diameter………… N/A
Quill Travel………….. N/A
Table Weight Capacity….. 2640 Lbs
Weight……………….. 15,400 Lbs
Dimensions……………. 175″l x 101″w x 113″h
EQUIPPED WITH:
(3) Axis Digital Readout
Pneumatic Draw Bar
Coolant
Work Light
Spanner & Wrenches
Auto Lubrication
Rapid Traverse
Ball Screws on (X, Y & W) Axis
MACHINE FEATURES
Geared Head (H & G)
“Heavy Duty” Meehanite Castings
H & G Box Ways
Table Backlash Eliminate (Adjustable)
(3) Way Powerfeed
(3) Way Rapid Traverse
#50 Spindle Taper
COMMENTS:

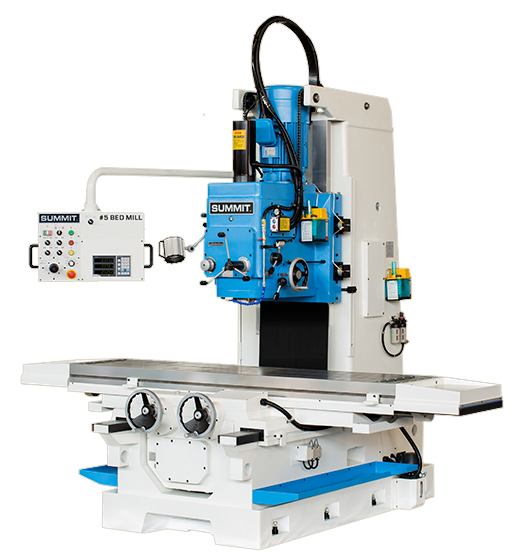

Catalog Photo
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
