72" x 80" CUTMASTER ... LATHE 5-1/8" SPINDLE HOLE
Click to enlarge

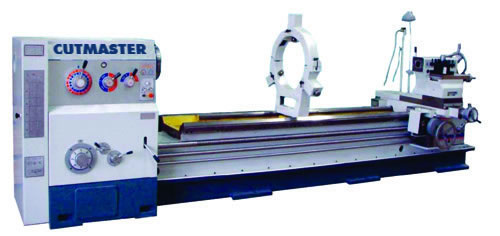

Home Lathes New and Used Lathes - Conventional 72″ x 80″ CUTMASTER … LATHE 5-1/8″ SPINDLE HOLE
72" x 60" CUTMASTER ... LATHE 5-1/8" SPINDLE HOLE
72" x 60" CUTMASTER ... LATHE 5-1/8" SPINDLE HOLE
Back to products
72" x 120" - 180" - 240" CUTMASTER LATHE5-1/8" SPINDLE HOLE
72" x 120" - 180" - 240" CUTMASTER LATHE5-1/8" SPINDLE HOLE

72″ x 80″ CUTMASTER … LATHE 5-1/8″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: LMG
Type: Geared Head Lathe
Year: New

SPECIFICATIONS:

Swing Over Bed……….. 72”
Swing Over Cross Slide… 56-3/4”
Swing In Gap…………. 78-3/4”
Dist Between Centers….. 80”
Spindle Nose…………. D1-11
Spindle Hole…………. 5-1/8”
Bed Width……………. 24”
Spindle Speeds(18)……. 6-480 RPM
Threading……………. Inch / Metric
Motor Size…………… 20 HP – 220/440V – 3 Phs
Tailstock Taper………. #6 MT
Weight………………. 19,900 Lbs
Dimensions…………… To be Advised

EQUIPPED WITH:

MACHINE FEATURES:

5-1/8” Spindle Hole
Gap Bed Design
Automatic Lubrication
Solid Cast Iron Base
H & G Headstock, Gears & Bedways

STANDARD EQUIPMENT:

20” – 3 Jaw (Steel) Chuck
25” – 4 Jaw (steel) Chuck
55” Face Plate
12” Drive Plate
27” Steady Rest  (Roller Bearing)
Inch/Metric Dials
Thread Chasing Dial
(2) Dead Centers & (1) Reducing Sleeve
Foot Brake
Halogen Work Light
Coolant System
Tool Box w/ Tools

OPTIONAL ACCESSORIES AVAILABLE:

Quick Change Toolpost
Taper Attachment  (30” Travel)
Newall DRO .. (Installed)

COMMENTS:

“USA” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.: Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 11052 Category: Lathes - Conventional
