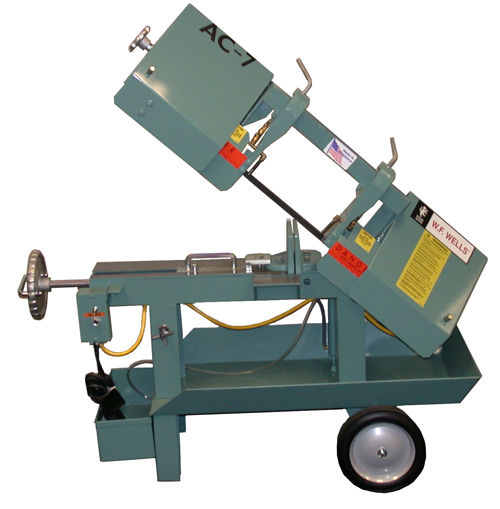

Model: AC-7
Type: Scissors Manual (Swivel Head)
Year: New
SPECIFICATIONS:
Cutting Capacity:
Mild Steel
Round
At 90 Degrees… 7”
At 45 Degrees… 4”
Rectangle
At 90 Degrees… 7” x 11”
At 45 Degrees… 4” x 4-3/4”
Work Height………….. 22-1/2”
Blade Size…………… 3/4” x .035” x 7’-10”
Blade Speed(4)……….. 55-180 SFPM
Motor Size…………… 3/4 HP-115V-1 Phs
Weight………………. 305 Lbs
EQUIPPED WITH:
45 Degrees Swiveling Vise
Quick & Easy Blade Speed Change
Manual – Band Tensioning
Manual – Vise
Built In Coolant System
Rotary Blade Brush
Automatic Shut At End Of Cut
Complete Blade Guarding
Bi-Metal Blades
Carbide Blade Guides
Operation & Parts Manuals
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Wheels & Handle Kit
Automatic Length Stop Assembly
16” Stock Stand (250 LBS Capacity)
Work Light
Vertical Work Table
Roller Guides In Place Of Carbide
230V – 1 PHS
230V – 3 PHS
460V – 3 PHS
6” Centers – Free Standing Roller Stock Conveyor
18” x 5’ x 2500 Lbs Capacity
18” x 10’ x 5000 Lbs Capacity
COMMENTS: Mfg. In U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
