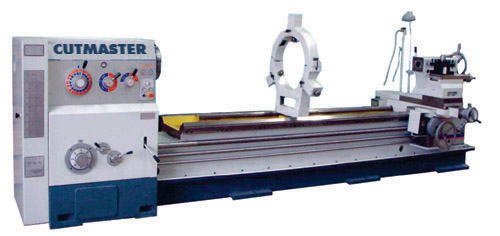

64″ x 120″ – 180″ – 240″ CUTMASTER BIG BORE LATHE 5-1/8″ SH

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model:  LMG
Type: Big Bore Lathe
Year:  New

SPECIFICATIONS:

Headstock…………….. Geared Head
Swing Over Bed:……….. 64”
Swing Over Cross Slide:… 48-7/8”
Swing In Gap:…………. 70-7/8 ”
Dist. Between Centers:…. 120”
Spindle Nose:…………. D1-11
Spindle Hole:…………. 5-1/8”
Bed Width:……………. 24”
Spindle Speeds(18)…….. 7 – 576 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 20 HP – 220/440V -3 Phs
Tailstock Taper:………. #6 MT
Weight:………………. 19,600 Lbs
Dimensions……………. To be Advised

EQUIPPED WITH :

STANDARD EQUIPMENT:

20” – 3 Jaw (Steel) Chuck
25” – 4 Jaw (Steel) Chuck
47” Face Plate
12” Drive Plate
27” Steady Rest (Roller Bearing)
Follow Rest
(4) Way Toolpost
(4) Way Rapid Traverse
Inch/Metric Dials
Thread Chasing Dial
(2) Dead Centers & (1) Reducing Sleeve
Foot Brake
Halogen Work Light
Coolant System
Tool Box w/Tools

MACHINE FEATURES:

5-1/8″ Spindle Hole
Gap Bed Design
Automatic Lubrication
Solid Cast Iron Base
H & G Head Stock, Gears & Bedways

COMMENTS:

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 9887 Category: Lathes - Conventional
