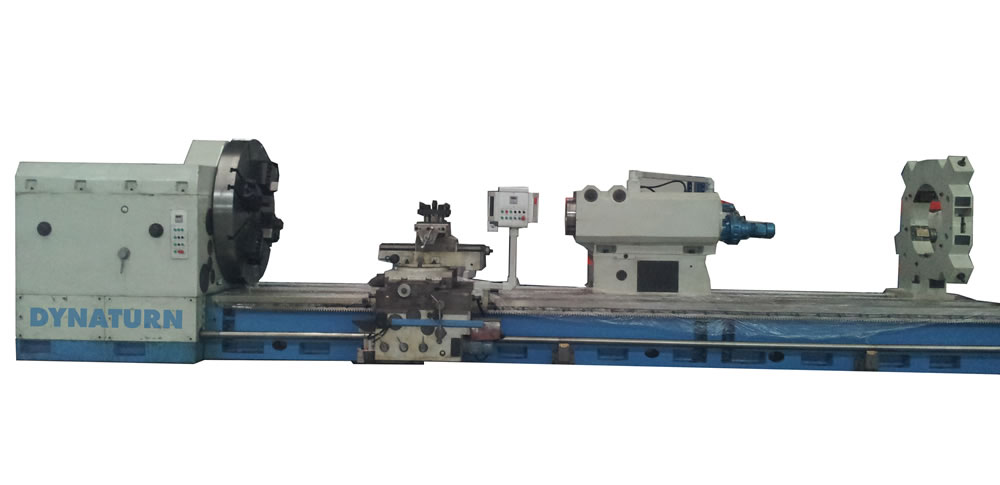

Model: Dyna-Turn
Type: Geared Head Lathe
Year: New
SPECIFICATIONS:
Swing Over Bed…………. 63”
Swing Over Cross Slide….. 49.21”
Swing in Gap…………… “No” Gap
Dist Between Centers……. 472” (39’-4”)
Spindle Nose…………… To Be Advised
Spindle Hole…………… To Be Advised
Bed Width……………… 63″ w/ (4) Ways
Spindle Speeds(3) Ranges… 80-160 RPM
Threading……………… Inch/Metric
Motor Size…………….. 90 HP – 380V – 3 Phs
Tailstock Taper………… To Be Advised
Weight………………… To Be Advised
Dimensions…………….. To be Advised
EQUIPPED WITH:
MACHINE FEATURES
Spindle Hole
(3) Speed Ranges (AC Inverter Drive)
H & G Bedways
STANDARD EQUIPMENT:
50” – 4 Jaw Chuck
(6) Way Rapid Traverse
(16” – 29-1/2”) Steady Rest
Dead Center
Work Light
Foundation Bolts & Leveling Pads
Tools & Tool Box
Operation Manual
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
