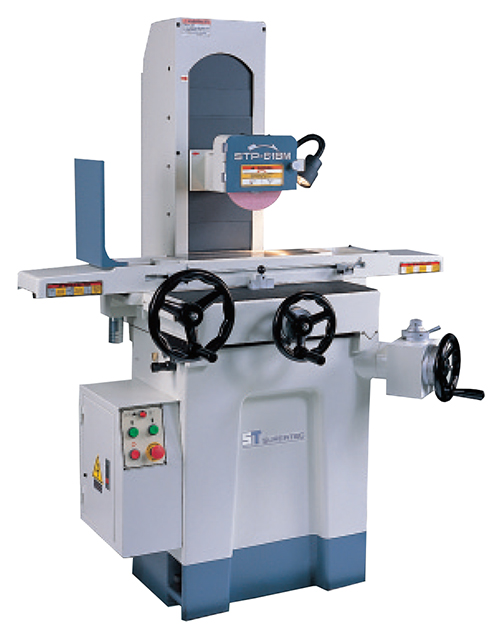

Model: STP-M
Type: Hand Operated
Year: New
SPECIFICATIONS:
Table Size………………… 6” x 18”
Longitudinal Travel………… 19”
Cross Travel………………. 6.6”
Vertical Travel……………. 19”
Center Line Spindle To Table… 19”
Wheel Size………………… 8” x 1/2” x 1-1/4”
Motor Size Voltage…………. 3 HP – 220/440V – 3 Phs
Axis……………………… Hand Operated
Table Weight Capacity………. To Be Advised
Weight……………………. 1740 Lbs
EQUIPPED WITH:
MACHINE FEATURES:
Table Traverse Manual
Cast Iron Base
Double-V Turcite Cross Ways
Hardened & Ground Ways
Class “7” Spindle Bearings
STANDARD EQUIPMENT:
Down Feed (Waist High)
Auto Lube System
Dust Guard
Balancing Arbor
Grinding Wheel
Diamond Dresser
Wheel Extractor
Tool Box & Tools
Halogen Work Light
OPTIONAL EQUIPMENT:
Grinding Wheel
Balancing Stand
Spare Wheel Flange
Permanent Magnetic Chuck
Electro Magnetic Chuck w/Auto Demagnetizer
O.S. Walker Fine Pole Chuck
O.S. Walker Fine Pole Chuck w/Control
Paper Filter Coolant System
Magnetic Separator & Paper Filter Coolant System
Dust Collector
(1) Axis Sony Digital Readout – Installed
(2) Axis Sony Digital Readout – Installed
COMMENTS
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.R. Location
TERMS: Check w/Order
All prices subject to change without notice
