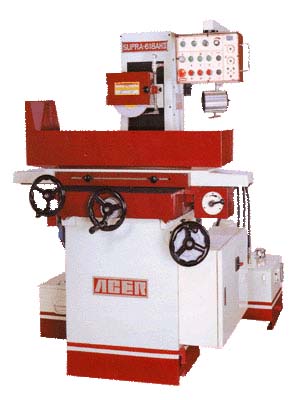

Model: 618-AH-II
Type: (2) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 6” x 18”
Longitudinal Travel…….(X).. 20”
Cross Travel…………..(Y).. 7-1/2”
Vertical Travel………..(Z).. 19-5/16”
Center Line Spindle To Table… 19”
Wheel Size………………… 8” x 1/2” x 1-1/4”
Spindle Speed……………… 3450 RPM
Motor Size………………… 3 HP – 220/440V – 3 Phs
Axis……………………… Hand Operated
Weight……………………. 2100 Lbs
Dimensions (LxWxH)…………. 58″ x 44″ x 77″
STANDARD EQUIPMENT:
Down Feed (Waist High)
Auto Lube System
Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheel
Diamond Dresser
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES:
(2) Axis Hydraulic
Excellent Accuracy
Hydraulic Table – “Roller Bearing”
Motorized Cross Feed
Cast Iron Base
Double-V Turcite Ways
Solid-State Controlled Cross Feed
Class “7” Spindle Bearings (Paired)
OPTIONAL EQUIPMENT (P.O.R.):
6” x 18” Acer Permanent Magnetic Chuck (Regular Pole)
6” x 18” Acer Electro Chuck w/Control
6″ x 18″ Walker Permanent Magnetic Chuck (Regular Pole)
6″ x 18″ Walker Electro Chuck (Fine Pole) w/Control
Parallel Dresser Overhead
Coolant System
Dust Collector & Coolant System
Coolant System w/Paper Filter
Coolant System w/Magnetic Separator & Paper Filter
Extra Wheel Flange
(2) Axis Newall Digital Readout
Micro Downfeed System
