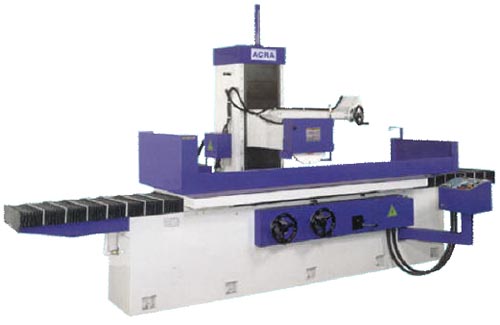

Model: HSG
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 24” x 80”
Longitudinal Travel………… 85”
Cross Travel………………. 26”
Vertical Travel……………. 30”
Center Line Spindle To Table… 30”
Wheel Size………………… 16” x 2” x 5”
Motor Size………………… 10 HP
Axis……………………… (3)Axis Automatic
Table Weight Capacity………. To Be Advised
Weight……………………. 21,500 Lbs
Dimensions………………… To be Advised
EQUIPPED WITH:
STANDARD EQUIPMENT:
Down Feed (On Head)
Auto Lube
Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheel
Grinding Wheel
Diamond Dresser
Wheel Flange
Tool Box & Tools
Halogen Work Light
MACHINE FEATURES
(2) Axis Hydraulic
Excellent Accuracy
Hydraulic Table – “Roller Bearing”
Motorized Cross Feed
Cast Iron Base
Double-V Turcite Cross Ways
Solid-State Controlled Cross Feed
Class “7” Spindle Bearings (Paired)
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Electro-Magnetic Chuck
Chuck Controller
Duct Collector & Coolant System
Paper Filter w/ Magnetic Separator
Computerized Down Feed
Parallel Dresser
Wheel Flange
(2) Axis Newall Digital Readout
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-4644376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
