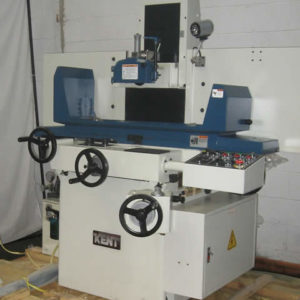

Model: 1020-HS
Type: (3) Axis Automatic
Year: New
SPECIFICATIONS:
Table Size………………… 10” x 20”
Longitudinal Travel…….(X).. 24”
Cross Travel…………..(Y).. 11-1/2”
Vertical Travel………..(Z).. 25”
Center Line Spindle To Table… 25”
Wheel Size………………… 8” x 1/2” x 1-1/4”
Motor Size………………… 2 HP
Voltage…………………… 220/440V – 3 Phs
Axis……………………… (2)Axis Automatic
Table Weight Capacity………. To Be Advised
Weight……………………. 3740 Lbs
EQUIPPED WITH:
MACHINE FEATURES:
(3) Axis Hydraulic (Automatic)
Automatic Incremental Down Feed
Excellent Accuracy
Hydraulic Table – “Roller Bearing”
Motorized Cross Feed
Cast Iron Base
Double-V Turcite Cross Ways
Solid-State Controlled Cross Feed
Class “7” Spindle Bearings (Paired)
STANDARD EQUIPMENT
Down Feed (Waist High)
Auto Lube System
Splash Guard
Grinding Wheel
Diamond Wheel Dresser
Wheel Flange & Extractor
Wheel Stand
Wheel Balancing Arbor
Leveling Screws & Plates
Halogen Work Light
OPTIONAL ACCESSORIES:
10” x 20” Permanent Magnetic Chuck
10” x 20” Electro-Magnetic Chuck
10” x 20” Electro-Magnetic Chuck (Fine Pole)
Chuck Controller
Coolant System
Dust Collector & Coolant System
Paper Filter w/Magnetic Separator
Rapid Vertical Speed
Computerized Vertical Downfeed
Parallel Dresser (Overhead)
Wheel Flange
(2) Axis Newall Digital Readout…(Installed)
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-4644376
F.O.R. Location
TERMS: Check w/Order
All prices subject to change without notice
