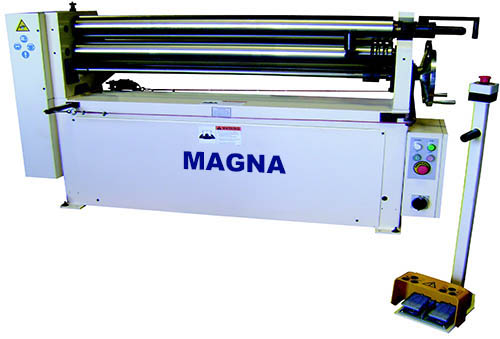

Model: 6′ x 10 GA
Type: Hydraulic
Year: New
SPECIFICATIONS:
Roll Length:…………….. 72”
Top Roll Diameter:……….. 5”
Rolling Cap. (Mild Steel):… .135” (10 GA)
Pre-Bend Cap.(Mild Steel):… .120” (11 GA)
Min. Diameter (Rolling):….. 7-3/4”
Min. Diameter (Pre-Bend):…. 7-3/4”
Number of Rolls (Total):….. (3)
Number of Rolls (Powered):… (3)
Rolling Speed:…………… 20 FPM
Motor:………………….. 4 HP – 220/440V – 3 Phs
Weight:…………………. 3,850 Lbs
EQUIPPED WITH :
Safety Type Forward & Reverse Foot Pedal
Adjustable Cone Attachment
3/8″, 1/2″ & 5/8″ Grooves on Rollers
Moveable Safety Foot Pedal
Operation & Parts Manual
MACHINE FEATURES :
Heavy Duty All Steel Welded Construction
(3) Hardened & Driven Rolls
Motorized Bending Roll w/Push Button Digital Display
Easy Swing Out Top Roller
Quick Release Upper Roll
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Safety Type Forward & Reverse Foot Pedal
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
