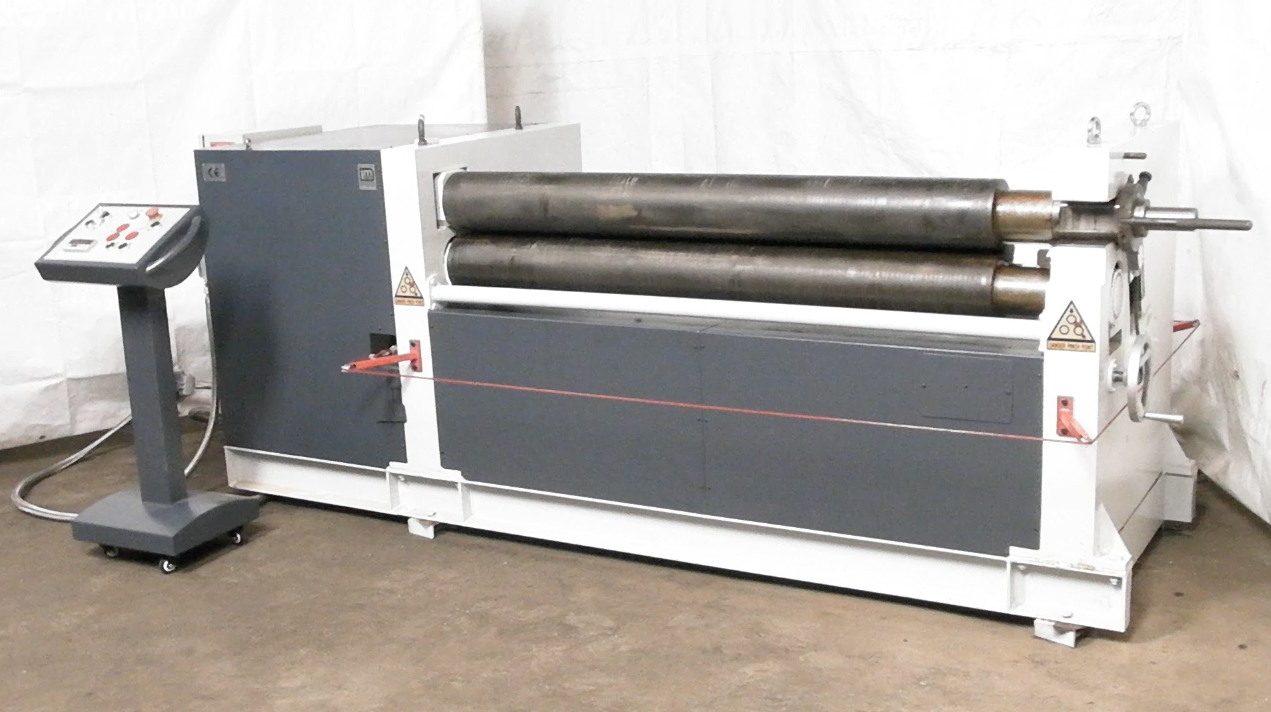

Model: USR-625
Type: Hydraulic
Year: New
SPECIFICATIONS:
Roll Length …………. 72”
Top Roll Diameter ……. 6.7”
Pinch Roll Diameter ….. 6.7″
Side Roll Diameter …… 6.7″
Rolling Capacity …….. 1/4″
Pre-Bend (Mild Steel) … 1/4″
Number of Rolls ……… 3
Rolling Speed ……….. 12.5 FPM
Motor ………………. 5.5 HP – 220/440V – 3 Phs
Machine Weight ………. 6800 Lbs
Dimensions (LxWxH)……. 144″ x 54″ x 44″
EQUIPPED WITH:
Top Roll Swing Out
Emergency Trip Line
Pedestal Control
LED Readout w/Memory
Quick Roll Adjustment
Cone Rolling Attachment
Crowned Rolls
Low Voltage Push Button Controls
Manual Drop In
MACHINE FEATURES:
(3) Driven Rolls
Hardened Rolls
High Torque Gear Box
Powered Roll Adjustment
Precision Pinch Roll Adjustment
Roll Position Indicator
