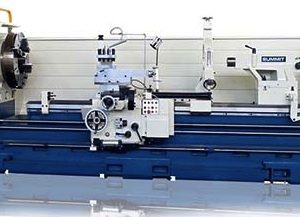

42″ x 280″ SUMMIT … HOLLOW SPINDLE LATHE6″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: 42-6

Year: New

SPECIFICATIONS:

Swing Over Bed……….. 42”
Swing Over Cross Slide… 29.5”
Swing in Gap…………. 63.4”
Dist Between Centers….. 280”
Max Turning Length……. 280”
Spindle Nose…………. A2-11
Spindle Hole…………. 6.1”
Bed Width……………. 22”
Spindle Speeds (12)…… 9 – 600 RPM
Threading……………. Inch / Metric
Motor Size…………… 30 HP – 220/440V – 3 Phs
Tailstock Taper………. #6 MT
Gross Weight…………. 33,800 Lbs
Shipping Dimensions…… 371”L x 63”W x 93”H

EQUIPPED WITH

(4) Way Rapid Traverse
Full Length Splash Guard
Chuck Guard
Steady Rest w/Rollers
Follow Rest
CoolantSystem
Taper Attachment
Halogen Work Light
Tool Box w/Tools
Manuals

MACHINE FEATURES

6.1″ Spindle Hole
Heavily Ribbed Cast Bed & Base
H & G Extra Wide Bed Ways
Removable Gap
Feed Reversing at the Apron
(2) Speed Tailstock
Auto Lube

OPTIONAL ACCESSORIES:

20″ – 3 Jaw Bison Chuck (Semi Steel)
20″ – 3 Jaw Bison Chuck (Steel)
25″ – 4 Jaw Bison Chuck (Semi Steel)
25″ – 4 Jaw Bison Chuck (Steel)
Quick Change Tool Post w/(6) Holders
Newall Digital Readout – Installed

COMMENTS:  Mfg. In Europe

“USA” IMPORTER  – DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL:  IMCO At 614-914-5087

F.O.B.:  Columbus, Ohio

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 12850 Category: Lathes - Conventional
