40" x 180" CUTMASTER ... BIG BORE LATHE 5-1/8" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 40″ x 180″ CUTMASTER … BIG BORE LATHE 5-1/8″ SPINDLE HOLE
Previous product
40" x 120" CUTMASTER ... BIG BORE LATHE 5-1/8" SPINDLE HOLE
40" x 120" CUTMASTER ... BIG BORE LATHE 5-1/8" SPINDLE HOLE
Back to products
Next product
20" - 22" EVERETT ... ABRASIVE CUT OFF SAW
20" - 22" EVERETT ... ABRASIVE CUT OFF SAW

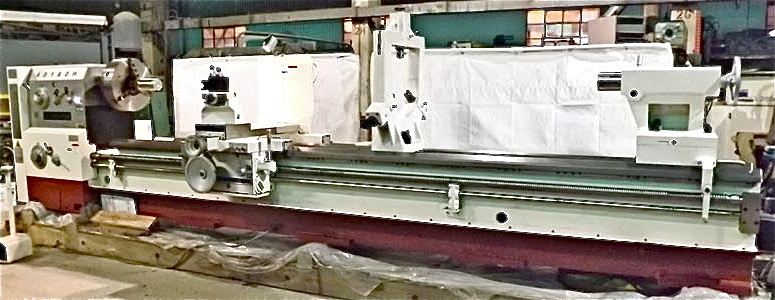

40″ x 180″ CUTMASTER … BIG BORE LATHE 5-1/8″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model:  LMG-BB … Geared Head
Type: Big Bore Lathe
Year:  New

SPECIFICATIONS:

Headstock…………….. Geared Head
Swing Over Bed:……….. 40”
Swing Over Cross Slide:… 27-9/16”
Swing In Gap:…………. 47-1/4”
Dist. Between Centers:…. 180”
Spindle Nose:…………. D1-11
Spindle Hole:…………. 5-1/8”
Bed Width:……………. 24”
Spindle Speeds(18)…….. 10 – 800 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 20 HP-220/440V-3 Phs
Tailstock Taper:………. #6 MT
Weight:………………. 17,700 Lbs
Dimensions……………. To be Advised

EQUIPPED WITH:

STANDARD EQUIPMENT:

20” – 3 Jaw Chuck
25” – 4 Jaw Chuck
31-1/2” Face Plate
12″ Drive Plate
20″ Large Steady Rest
Follow Rest
Removeable Gap
4 – Way Tool Post
Foot Brake
Work Light
Coolant System
Section Splash Guard on Rear of Carriage
(2) Dead Centers & (1) Reducing Sleeve
Thread Chasing Dial
Inch/Metric Dial
4 – Way Rapid Traverse on Carriage
Tool Box w/Tools

 MACHINE FEATURES:

5-1/8″  Spindle Hole
Gap Bed Design
Automatic Lubrication
Solid Cast Iron Base
H & G Head Stock, Gears & Bed Ways

OPTIONAL ACCESSORIES AVAILABLE:  P.O.R.

Quick Change Tool Post
Newall DRO..(Installed)
Taper Turning Attachment

COMMENTS:

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part?
Have a Techicnial Question?

CALL:  IMCO at 614-914-5087

F.O.B. Location

TERMS:  Check w/Order

All prices subject to change without notice





















































SKU: 10832 Category: Lathes - Conventional
