Model: MIT
Type: Manual Abrasive Cut-Off Saw
Year: New
SPECIFICATIONS:
Wheel Size…………. 20” Or 24”
Arbor Shaft… 1”
Capacity:
Solids
90 degrees… 3″
45 degrees… 2.5″
Shapes
90 degrees… 6″
45 Degrees… 4″
Motor Size……… 10 HP – 220V Or 440V – 3 Phs.
Weight………….760 Lbs.
EQUIPPED WITH:
MACHINE FEATURES
Head Swivels 45, 30, 15, & 0 Degrees (Right) Only
TEFC Motor
Magnetic Starter
Adjustable Down Stop
Heavy Duty Sealed Bearings
STANDARD EQUIPMENT
Safety Guards
Cabinet Base
Air-Operated Dual Change Hold Down Vise
OPTIONAL ACCESSORIES ONLY: P.O.R.
Miter Hood
20 HP w/PH
20 HP w/PH & WWC
20 HP Upgrade
20 HP w/PH
20 HP w/PH & WWC
20 HP w/OSC
10 HP w/PH & OSC
20 HP w/PH, WWC & OSC
Double Action Air Operated Vise
Dust Collector Fume Exhaust
Out Board Support
24” Air Operated Work Length Gage
Oil Mist Spray
(10) 20” Abrasive Wheels (52 Lbs)
(10) 22” Abrasive Wheels (52 Lbs)
COMMENTS: Mfg. In USA
ABRASIVE WHEEL NOT INCLUDED.

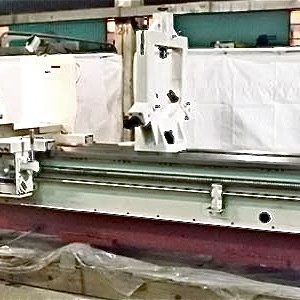

Catalog Photo
