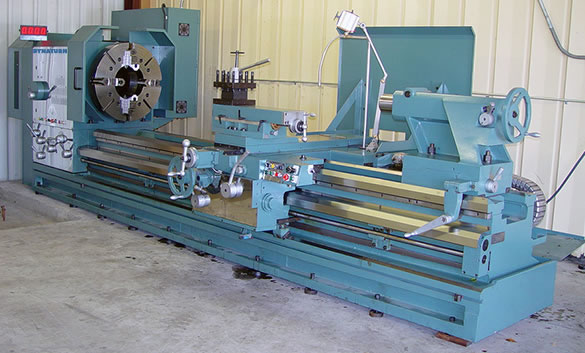

Model: PA-35/V6-60 (Big Bore)
Type: Oil Country Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 35”
Swing Over Cross Slide… 24”
Swing In Gap…………. 53”
Dist. Between Centers…. 60″
Spindle Hole…………. 6″
Spindle Nose…………. A2-11
Bed Width:
w/o Auxiliary Guide… 22″
w/Auxiliary Guide….. 25-1/2″
Spindle Speeds(VS)……. 18 – 800 RPM
Threading……………. Inch / Metric
Motor Size…………… 30 HP – 440V – 3 Phs
Tailstock Taper………. #6 MT
Weight………………. 22,000 Lbs (Approx.)
Dimensions…………… To be Advised
EQUIPPED WITH:
26″ – 4 Jaw Chuck (6″ Bore)
6″ Spindle Hole
Variable Speed
(1-1/4” – 13-3/4”) Steady Rests
Note: Larger Sizes Available
(6) Way Power Feed
(6) Way Rapid Traverse
(4) Way Tool Post
Hardened And Ground Bed Ways & Cross Slide
Hardened And Ground Gears & Shafts
Auxiliary Bed Ways
Electric Spindle Brake
(2) Speed Tail Stock
Automatic Lubrication
Coolant System
Splash Guard (Front)
Thread Dial
Work Light
Low Voltage Control
Tool Box
Optional
ACCESSORIES AVAILABLE … (P.O.R.)
Digital Readout
3 Jaw Chuck
Automatic Threading – Internal & External
Chip Conveyor (10″ Wide X 60″ Long)
Following Rear Splash Guard
Full Length Splash Guard (Rear)
Aloris Quick Change Tool Post W/(4) Holders
Taper Attachment Mechanical Or Hydraulic
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
