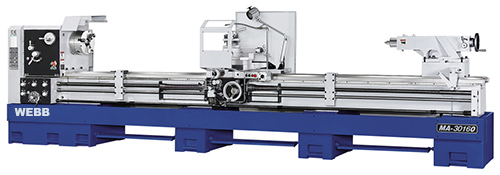

30" x 200" WEBB ... LATHE 4-1/16" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 30″ x 200″ WEBB … LATHE 4-1/16″ SPINDLE HOLE
Previous product
30" x 120" WEBB ... LATHE 4-1/16" SPINDLE HOLE
30" x 120" WEBB ... LATHE 4-1/16" SPINDLE HOLE
Back to products
Next product
30" x 240" WEBB ... LATHE 4-1/16" SPINDLE HOLE
30" x 240" WEBB ... LATHE 4-1/16" SPINDLE HOLE

30″ x 200″ WEBB … LATHE 4-1/16″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: MA-30200
Type: Precision Geared Head
Year: New

SPECIFICATIONS:

Swing Over Bed………… 30”
Swing Over Cross Slide…. 19”
Swing in Gap………….. 38-1/2”
Dist. Between Centers….. 200”
Spindle Nose………….. A2-11
Spindle Hole………….. 4-1/16”
Bed Width:……………. 17-1/2”
Spindle Speeds (18)……. 18 – 1050 RPM
Threading…………….. Inch/Metric
Motor Size……………. 15 HP – 220V – 3 Phs
Tailstock Taper……….. #5 MT
Weight……………….. 11,245 Lbs
Dimensions……………. To be Advised

EQUIPPED WITH:

Rear Chip Guard
Flood Coolant
Automatic Forced Lubrication
Longitudinal Adjustable Stop
Center Sleeve
(2) Dead Centers
Foot Brake
Operation &
Parts Manuals

MACHINE FEATURES:

4-1/16″ Spindle Hole
“Heavy Duty” Meehanite Casting
Gap Bed Design
H & G Head Stock Gears
H & G Bed Ways
Inch Metric Dials

OPTIONAL ACCESSORIES AVAILABLE … P.O.R.

12″ – 3 Jaw Chuck
16″ – 3 Jaw Chuck
18″ – 4 Jaw Chuck
20″ – 4 Jaw Chuck
20″ – 4 Jaw Chuck
Upgrade to 20 HP
15 HP Inverter Head w/Constant Surface Speed
20 HP Inverter Head w/Constant Surface Speed
6” Spindle Bore (A2-11)
9” Spindle Bore (A2-15)
12” Spindle Bore (A2-20)
Steady Rest w/Roller Jaws
Follow Rest
20″ Face Plate
Taper Attachment
Rear Spindle Chuck Mount
Micrometer Carriage Stop
Quick Change Tool Post w/(6) Holders
Moving Rear Splash Guard
Newall Digital Readout

“U.S.A” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 14117 Category: Lathes - Conventional
