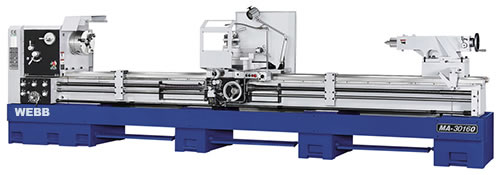

Model: MA
Type: Precision Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed………… 30”
Swing Over Cross Slide…. 19”
Swing in Gap………….. 38-1/2”
Dist. Between Centers….. 160”
Spindle Nose………….. A2-11
Spindle Hole………….. 4-1/16”
Bed Width…………….. 17-1/2”
Spindle Speeds (18)……. 18 – 1050 RPM
Threading…………….. Inch/Metric
Motor Size……………. 15 HP – 220/440V – 3 Phs
Tailstock Taper……….. #5 MT
Weight……………….. 10,145 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
Rear Chip Guard
Flood Coolant
Automatic Forced Lubrication
Longitudinal Adjustable Stop
Center Sleeve
(2) Dead Centers
Foot Brake
Operation &
Parts Manuals
MACHINE FEATURES:
4-1/16″ Spindle Hole
“Heavy Duty” Meehanite Casting
Gap Bed Design
H & G Head Stock Gears
H & G Bed Ways
Inch Metric Dials
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
12″ – 3 Jaw Chuck
16″ – 3 Jaw Chuck
18″ – 4 Jaw Chuck
20″ – 4 Jaw Chuck
20″ – 4 Jaw Chuck
Upgrade to 20 HP
15 HP Inverter Head w/Constant Surface Speed
20 HP Inverter Head w/Constant Surface Speed
6” Spindle Bore (A2-11)
9” Spindle Bore (A2-15)
12” Spindle Bore (A2-20)
Steady Rest w/Roller Jaws
Follow Rest
20″ Face Plate
Taper Attachment
Rear Spindle Chuck Mount
Micrometer Carriage Stop
Quick Change Tool Post w/(6) Holders
Moving Rear Splash Guard
Newall Digital Readout
