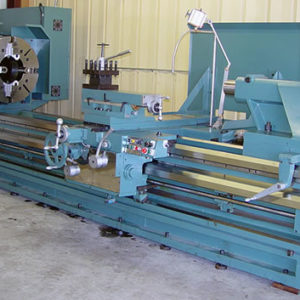

26" x 80" CUTMASTER ... LATHE 4-1/8" SPINDLE HOLE
Click to enlarge
Home Lathes New and Used Lathes - Conventional 26″ x 80″ CUTMASTER … LATHE 4-1/8″ SPINDLE HOLE
20 GA, 7/32"... METAL CRAFT ... MANUAL FLANGER
20 GA, 7/32"... METAL CRAFT ... MANUAL FLANGER
Back to products
10 HP DAYTON ... AIR COMPRESSOR
10 HP DAYTON ... AIR COMPRESSOR

26″ x 80″ CUTMASTER … LATHE 4-1/8″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: GT Series
Type: Geared Head Lathe
Year: New

SPECIFICATIONS:

Headstock…………….. Geared Head
Swing Over Bed:……….. 26”
Swing Over Cross Slide:… 16-1/2”
Swing In Gap:…………. 34-1/2”
Dist. Between Centers:…. 80”
Spindle Nose:…………. D1-8
Spindle Hole:…………. 4-1/8”
Bed Width:……………. 15-1/2”
Spindle Speeds (12)……. 30 – 1600 RPM
Threading:……………. Inch / Metric
Motor Size:…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper:………. #5 MT
Weight:………………. 8150 – 8700 – 9350 Lbs
Dimensions……………. To be Advised

EQUIPPED WITH:

STANDARD EQUIPMENT:

12” – 3 Jaw (Steel) Chuck w/Reversible Jaws
20” – 4 Jaw (Steel) Chuck
25” Face Plate
10” Drive Plate
(6-3/4” – 12-1/2”) Steady Rest (Roller Bearing)
(1” – 3”) Follow Rest
(4) Way Toolpost
(4) Way Rapid Traverse
Inch/Metric Dials
Thread Chasing Dial
Taper Attachment
Full Length Splash Guard (60” & 80”)
Section Splash Guard (120”)
(2) Dead Centers & (1) Reducing Sleeve
Foot Brake
Halogen Work Light
Coolant System
Tool Box w/Tools

MACHINE FEATURES:

4-1/8″ Spindle Hole
Gap Bed Design
Spindle Clutch & Brake

NOTE: Motor does not turn “Off” when going from Forward to Neutral … (8) Times the Motor Life

Geared Head
Automatic Lubrication
Solid Cast Iron Base
H & G Headstock, Gears & Bedways

COMMENTS:

“U.S.A.” IMPORTER -DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087

F.O.B.: Location

TERMS: Check w/Order

All prices subject to change without notice

















SKU: 9483 Category: Lathes - Conventional
