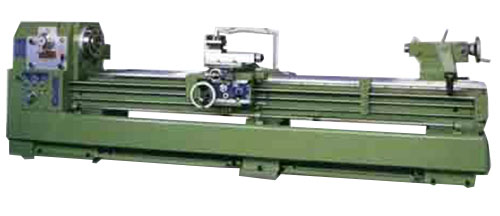

Model: LS
Type: Precision Geared Head Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 26”
Swing Over Cross Slide… 17-1/2”
Swing in Gap…………. 35-7/16”
Dist Between Centers….. 120”
Spindle Nose…………. D1-11
Spindle Hole…………. 4-1/16”
Bed Width……………. 15-3/4”
Spindle Speeds (12)…… 13 – 1200 RPM
Threading……………. Inch / Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 9680 Lbs
Dimensions…………… 177”(l) x59”(w) x 71”(h)
EQUIPPED WITH:
STANDARD EQUIPMENT:
15” – 3 Jaw Chuck w/ Back Plate
(4) Way Tool Post
Full Lenght Splash Guard
Coolant System
Steady Rest
Follow Rest
Tail Stock
Foot Brake
Tool Box w/ Tools
Operation & Parts Manual
MACHINE FEATURES:
4-1/16” Spindle Hole
Gap Bed
Rapid One Piece Balance Casting Bed
Meehanite Casting
Spindle Supported By (3) Precision Roller Bearings
H & G Bed, Slide Way & Gears
OPTIONAL ACCESSORIES:
12” – 3 Jaw Chuck
15” – 3 Jaw Chuck
16” – 4 Jaw Chuck
20” – 4 Jaw Chuck
25” – 4 Jaw Chuck
Work Light
Newall Digital Readout – Installed
