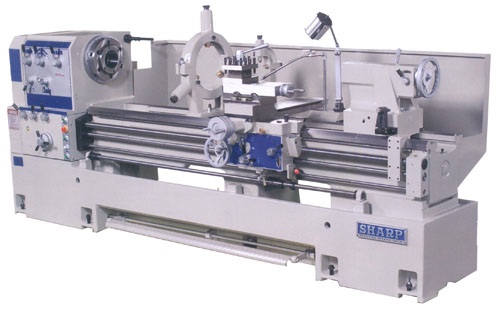

26" x 100" SHARP ... LATHE 4-1/2" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 26″ x 100″ SHARP … LATHE 4-1/2″ SPINDLE HOLE
Previous product
26" x 80" SHARP ... LATHE 4-1/2" SPINDLE HOLE
26" x 80" SHARP ... LATHE 4-1/2" SPINDLE HOLE
Back to products
Next product
26" x 120" SHARP ... LATHE 4-1/2" SPINDLE HOLE
26" x 120" SHARP ... LATHE 4-1/2" SPINDLE HOLE

26″ x 100″ SHARP … LATHE 4-1/2″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: 26100-B
Type: Geared Head
Year: New

SPECIFICATIONS:

Headstock……………. Geared Head
Swing Over Bed……….. 26”
Swing Over Cross Slide… 17.24”
Swing in Gap…………. 35”
Dist Between Centers….. 100”
Max Turning Length……. 100”
Spindle Nose…………. D1-11
Spindle Hole…………. 4-1/2”
Bed Width……………. 15.75”
Spindle Speeds(12)……. 10 – 1000 RPM
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 7110 Lbs
Dimensions…………… To be Advised

EQUIPPED WITH:

16″ – 4 Jaw Chuck
(4) Way Toolpost
Coolant System
Splash Guard
Chuck Guard
(4″ – 11-1/2″) Steady Rest
20″ Face Plate
(4) Way Carriage Stops
Thread Dial
Rapid Traverse
Tailstock
Halogen Work Light
Tool Kit & Manuals

MACHINE FEATURES

4-1/2″ Spindle Hole
Gap Bed Design
Quick Change Gear Box
H & G Headstock Gears
H & G Bedways
(1) Piece Cast Meehanite Bed

OPTIONAL ACCESSORIES:

12″ – 3 Jaw Bison Chuck (4.05” Bore)
16″ – 3 Jaw Bison Chuck (5.34” Bore)
20″ – 3 Jaw Bison Chuck (7.48” Bore)
25″ – 3 Jaw Bison Chuck (7.60” Bore)
16″ – 4 Jaw Bison Chuck
20″ – 4 Jaw Bison Chuck
25″ – 4 Jaw Bison Chuck
Micrometer Carriage Stop
Taper Attachment
Roller Jaws for Steady Rest
15″ Steady Rest
5C Collet Set (1/8″ – 1-1/8″ x 1/16″)
5C Lever Collet Closer
“Aloris Type” Q.C. Tool Post w/(7) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0″ – 1/2″ Capacity)
#5 MT Live Center
Newall Digital Readout

“USA” IMPORTER – PARTS & SERVICE CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 12227 Category: Lathes - Conventional
