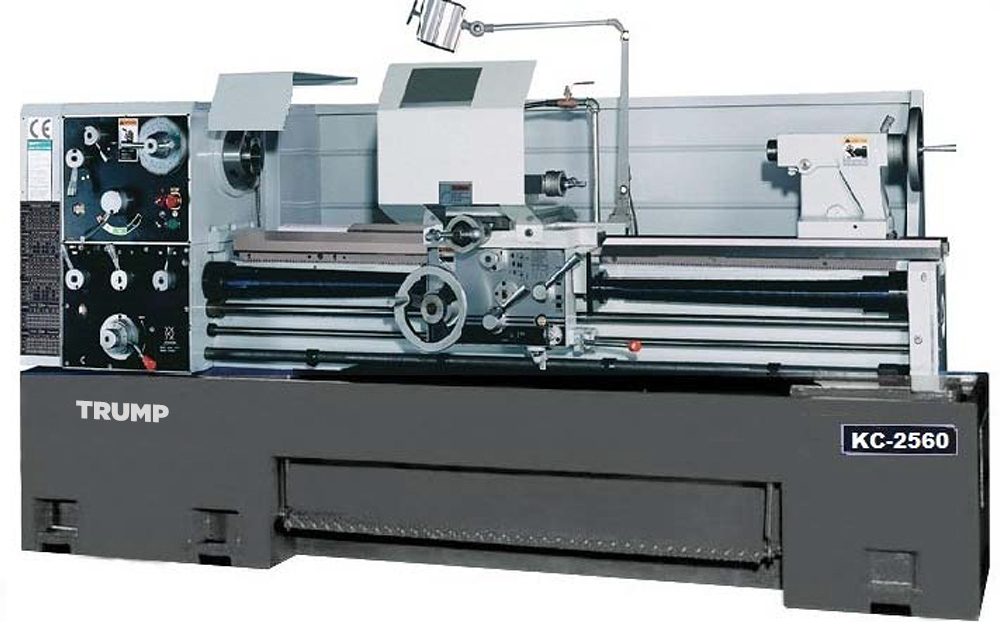

25" x 40" TRUMP ... LATHE 3.34" SPINDLE HOLE
Click to enlarge
Home Lathes New and Used Lathes - Conventional 25″ x 40″ TRUMP … LATHE 3.34″ SPINDLE HOLE

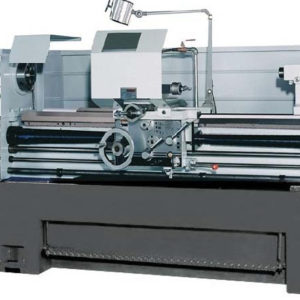

18" x 60" TRUMP ... LATHE 2.2" SPINDLE HOLE
18" x 60" TRUMP ... LATHE 2.2" SPINDLE HOLE
Back to products
25" x 60" TRUMP ... LATHE 3.34" SPINDLE HOLE
25" x 60" TRUMP ... LATHE 3.34" SPINDLE HOLE

25″ x 40″ TRUMP … LATHE 3.34″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: KC-2540
Type: Geared Head
Year: New

SPECIFICATIONS:

Headstock Type……….. Geared Head
Swing Over Bed……….. 24.8”
Swing Over Cross Slide… 17.71”
Swing in Gap…………. 31.77”
Dist. Between Centers…. 39.3”
Spindle Nose…………. D1-8
Spindle Hole…………. 3.34” (4.13” & 6.1” Opt)
Bed Width……………. 13.7”
Spindle Speeds……….. (VS) 25 – 1500 RPM
Threading……………. Inch/Metric
Motor Size…………… 10 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 6505 Lbs
Dimensions…………… To be Advised

EQUIPPED WITH:

(4) Way Tool Post
Coolant System
One Shot Lube
Full Length Splash Guard
(1) Back Plate For 3-Jaw Chuck
Thread Dial
Center & Center Sleeve
Foot Brake
Leveling Block
Halogen Work Light
Tool Kit
Manuals

MACHINE FEATURES:

3.34″ Spindle Hole
Gap Bed Design
Overload Clutch
H & G Headstock Gears
H & G Bedways
(1) Piece Cast Meehanite Bed

OPTIONAL ACCESSORIES:

10″ – 3 Jaw Chuck
12″ – 3 Jaw Chuck
Upgrade From 10 HP To 15 HP
Upgrade 4.13” Spindle Bore w/D-11 Nose (Speeds: 23 – 1300 RPM)
Upgrade 6.1” Spindle Bore w/A2-11 Nose (18 Speeds)
(2.3” – 11”) Steady Rest
(16”) Face Plate
Follow Rest
Micro Meter Carriage Stop
Taper Attachment
Newall Digital Readout – Installed

COMMENTS:

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.: Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 13339 Category: Lathes - Conventional
