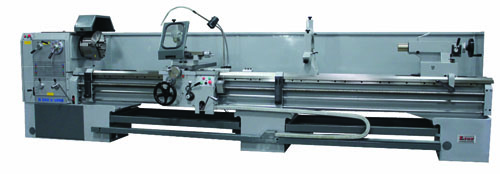

Model: 25120-CU
Type: Heavy Duty
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed:……….. 25”
Swing Over Cross Slide:… 17”
Swing In Gap:…………. 33”
Dist. Between Centers:…. 120”
Spindle Nose:…………. D1-11
Spindle Hole:…………. 4-1/8”
Bed Width:……………. 19”
Spindle Speeds:(16)……. 9 – 1600 RPM
Threading:……………. Inch/Metric
Motor Size:…………… 17-1/2 HP – 220V – 3 Phs
Tailstock Taper:………. #6 MT
Weight:………………. 11,200 Lbs
Dimensions……………. 183″(l) x 57″(w) x 61″(h)
EQUIPPED WITH:
15” – 3 Jaw Chuck
20” – 4 Jaw Chuck
Chuck Guard (will Accommodate 4 Jaw Chuck)
9″ Steady Rest w/Rollers
Oil Pressure Site Glasses
Splash & Chip Guard
Follow Rest
Work Light
Leveling Screws
Inch/Metric Dials
Coolant Pump
MACHINE FEATURES:
Geared Head
4-1/8″ Spindle Hole
“Heavy Duty” Stock Removal
NOTE: “Monoblock” Solid Cast Bed & Legs
Gap Bed Design
H & G Headstock Gears
H & G Bed Ways
Inch Metric w/o Chang of Gears
(4) Way Rapid Traverse
Lathe will “Only” Start if Guard is Over Chuck
Precision SKF Spindle Bearings
Tag Along Tailstock (for Power Drilling/Boring)
“Double” Multi Disc Clutch & Brake
Override Safety Clutch
Direct Reading Cross Slide Dial
Cut Away in Ways for Coolant
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
16″ – 3 Jaw Chuck (Semi-Steel)
20″ – 3 Jaw Chuck (Semi-Steel)
18” Face Plate
15” Steady Rest w/Rollers
Taper Attachment
Aloris Quick Change Toolpost Set
(2) Axis Newall Digital Readout (Installed)
COMMENTS: Mfg. In Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
