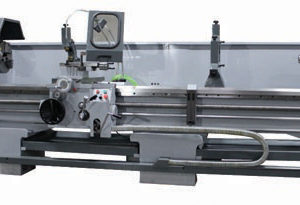

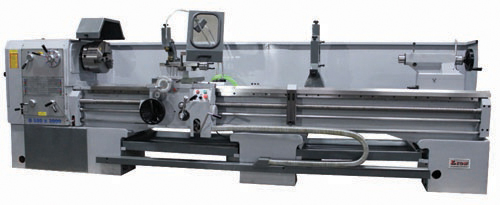

Model: 23120-MT … Geared Head
Type: Heavy Duty Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 23-1/2″
Swing Over Cross Slide… 15-3/4″
Swing In Gap…………. 32″
Dist. Between Centers…. 120”
Spindle Nose…………. D1-11
Spindle Hole…………. 4-1/8″
Bed Width……………. 15-3/4″
Spindle Speeds(16)……. 8 – 1400 RPM
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 9200 Lbs
Dimensions…………… 180″(l) x 51″(w) x 62″(h)
EQUIPPED WITH:
12″ – 3 Jaw Chuck
15-3/4″ – 4 Jaw Chuck
Safety Guard for Chuck (will Accomodate 4 Jaw Chuck)
7” Steady Rest w/Rollers
Taper Attachment
Oil Pressure Sight Glasses
Splash-Chip Guard
Follow Rest
Work Light
Leveling Screws
Inch/Metric Dials
Coolant Pump
MACHINE FEATURES:
4-1/8″ Spindle Hole
Gap Bed Design
H & G Headstock Gears
H & G Bed Ways
Inch Metric w/o Change of Gears
(4) Way Rapid Traverse
Precision SKF Spindle Bearings
(2) Speed Tailstock
Double Multi Disc Clutch & Brake
Override Safety Clutch
Direct REading Cross Slide Dial
Cut Away in Waus for Coolant
“OPTIONAL ACCESSORIES“ AVAILABLE … P.O.R.
16” – 3 Jaw Chuck (Semi-Steel)
16” – 4 Jaw Chuck (Semi-Steel)
18” Face Plate
12” Steady Rest w/Rollers
Quick Change Tool Post Set
(2) Axis Newall Digital Readout (Installed)
COMMENTS: Mfg. in Europe
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
