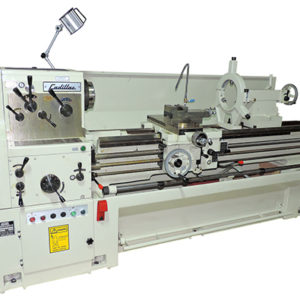

22″ x 40″ CADILLAC … LATHE 2-9/32″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: W-560
Type: Tool Room Lathe
Year: New

SPECIFICATIONS:

Headstock…………….. Geared Head
Swing Over Bed………… 22”
Swing Over Cross Slide…. 15”
Swing in Gap………….. 31”
Dist. Between Centers….. 40”
Spindle Nose………….. D1-6
Spindle Hole………….. 2-9/32”
Bed Width…………….. 13-3/4”
Spindle Speeds (12)……. 25 – 1500 RPM
Threading…………….. Inch/Metric
Motor Size……………. 10 HP – 220/440V – 3 Phs
Tailstock Taper……….. #4 MT
Weight……………….. 5400 Lbs

EQUIPPED WITH:

Inch/Metric Threading
Follow Rest
6” Steady Rest
21” Face Plate
Drive Plate
(2) Speed Tailstock
(2) Dead Centers
(1) Position “Auto Feed” Kick-Out
Splash Guard
Center Sleeve
Coolant System
Leveling Blocks
Operation & Parts Manual

MACHINE FEATURES:

Meehanite Base, Bed & Castings
H & G Bedways
Turcite Slideways
Foot Brake
Auto Lubrication
Micro Carriage Stop

OPTIONAL ACCESSORIES” AVAILABLE … (P.O.R.)

  8″ – 3 Jaw Chuck
10″ – 3 Jaw Chuck
12″ – 3 Jaw Chuck
16″ – 3 Jaw Chuck
10” – 4 Jaw  Chuck
12″ – 4 Jaw Chuck
16” – 4 Jaw Chuck
Aloris Type Quick Change Toolost w/(5) Holder
Square Turret Toolpost
Follow Rest
Micro Carriage Stop
Taper Turning Attachment
(2) Axis Newall Digital Readout

COMMENTS:  Mfg. In Taiwan

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

    Need a Part ?
    Have a Technical Question ?

CALL: IMCO at 614-914-5087

TERMS: Check w/Order

F.O.B.: Location

All prices subject to change without notice







SKU: 6826 Category: Lathes - Conventional
