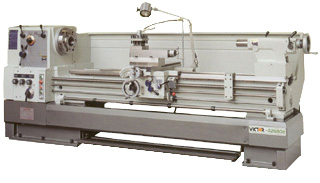

22" x 120" VICTOR ... LATHE 4-1/8" SPINDLE HOLE
Click to enlarge
Home Lathes New and Used Lathes - Conventional 22″ x 120″ VICTOR … LATHE 4-1/8″ SPINDLE HOLE
22" x 100" VICTOR ... LATHE 4-1/8" SPINDLE HOLE
22" x 100" VICTOR ... LATHE 4-1/8" SPINDLE HOLE
Back to products
16" x 40" CADILLAC ... LATHE 1-3/4" SPINDLE HOLE
16" x 40" CADILLAC ... LATHE 1-3/4" SPINDLE HOLE

22″ x 120″ VICTOR … LATHE 4-1/8″ SPINDLE HOLE

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

Model: S22120-S
Type: Heavy Duty Lathe
Year:  New

SPECIFICATIONS:

Headstock Type……….. Geared Head
Swing Over Bed……….. 22”
Swing Over Cross Slide… 14-1/8”
Swing in Gap…………. 29-3/8”
Dist Between Centers….. 120”
Spindle Nose…………. D1-11
Spindle Hole…………. 4-1/8”
Bed Width……………. 15-3/4”
Spindle Speeds(12)……. 15 – 1200 RPM
Threading……………. Inch/Metric
Motor Size…………… 15 HP – 220/440V – 3 Phs
Tailstock Taper………. #5 MT
Gross Weight…………. 7458 Lbs
Dimensions…………… 185″(l) x 45″(w) x 67″(h)

EQUIPPED WITH:

(3” – 10”) Steady Rest
(4) Way Tool Post
20” Face Plate
Coolant System
On Carriage Splash Guard
Chuck Cover w/Limit Switch
Thread Dial
Halogen Work Light
Wrenches & Tool Box

MACHINE FEATURES

4-1/8″ Spindle Hole
(2) Speed Tailstock
H & G Gears & Bed Ways
Gap Bed
“Meehanite Casting” Bed
Foot Brake
Spindle Support by (3) Precision Bearings
Rigid Compound for Heavy Cutting

OPTIONAL ACCESSORIES:  P.O.R.

12″ – 3 Jaw Chuck
15″ – 3 Jaw Chuck
15″ – 3 Jaw Chuck (Zero Set)
16″ – 4 Jaw Chuck
(8” – 15”) Steady Rest w/Roller Heavy Duty
Follow Rest
Drive Plate
#5 MT Live Center
Taper Turning Attachment
Quick Change Tool Post w/(5) Holders
(2) Axis Newall DRO – Installed

“U.S.A.”  IMPORT – DISTRIBUTION & PARTS CENTER

   Need a Part  ?
   Have a Technical Question  ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 7825 Category: Lathes - Conventional
