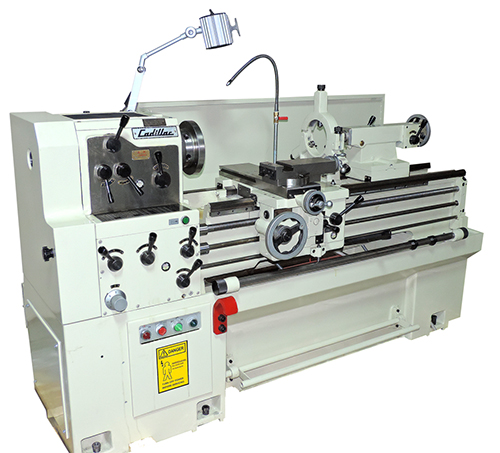

Model: W-400
Type: Tool Room Lathe
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed:……….. 16”
Swing Over Cross Slide:… 9-1/4”
Swing In Gap:…………. 25”
Dist. Between Centers:…. 40”
Spindle Nose:…………. D1-5
Spindle Hole:…………. 1-3/4”
Bed Width:……………. 10-3/4”
Spindle Speeds:(12)……. 67 – 2000 RPM
Threading:……………. Inch/Metric
Motor Size:…………… 5 HP – 220/440V – 3 Phs
Tailstock Taper:………. #4 MT
Weight:………………. 3480 Lbs
Dimensions……………. 83″L x 30″W x 45″H
EQUIPPED WITH:
Inch/Metric Thread Dial
Follow Rest
5” Steady Rest
15” Face Plate
6” Drive Plate
(2) Dead Centers
Splash Guard
Coolant System
Longitudinal Adjustable Stop
Leveling Blocks
Operation & Parts Manual
MACHINE FEATURES:
Meehanite Base, Bed & Castings
H & G Bedways
Foot Brake
Turcite Slideways
Auto Lubrication
Micro Carriage Stop
(2) Speed Tailstock
“OPTIONAL ACCESSORIES” AVAILABLE … (P.O.R.)
8” – 3 Jaw Chuck
10” – 3 Jaw Chuck
Live Center
Lever Collet Attachment
Aloris Type Quick Change Toolpost w/(5) Holders
Square Turret Toolpost
Follow Rest
Micro Carriage Stop
Taper Attachment
(2) Axis Newall Digital Readout
COMMENTS: Mfg. In Taiwan
