21" x 80" ACRA ... LATHE 3-1/8" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 21″ x 80″ ACRA … LATHE 3-1/8″ SPINDLE HOLE
Previous product
X=36" - Y=12" - Z=18" ACRA ... "HORIZONTAL/VERTICAL" MILL
X=36" - Y=12" - Z=18" ACRA ... "HORIZONTAL/VERTICAL" MILL
Back to products
Next product
21" x 120" ACRA ... LATHE 3-1/8" SPINDLE HOLE
21" x 120" ACRA ... LATHE 3-1/8" SPINDLE HOLE

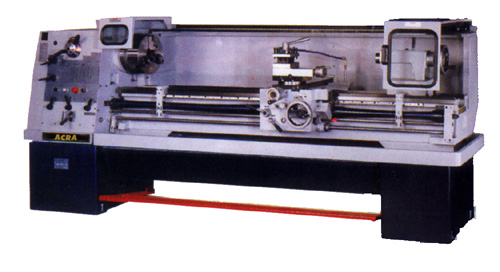

21″ x 80″ ACRA … LATHE 3-1/8″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: 2100C
Type: Precision Lathe
Year: New

SPECIFICATIONS:

Headstock…………….. Geared Head
Swing Over Bed………… 21”
Swing Over Cross Slide…. 14”
Swing In Gap………….. 31”
Dist. Between Centers….. 80”
Spindle Nose………….. D1-8
Spindle Hole………….. 3-1/8”
Bed Width…………….. 13-1/2”
Spindle Speeds (16)……. 20 – 1600 Rpm
Threading…………….. Inch/Metric
Motor Size……………. 12.5 HP – 220/440V – 3 Phs
Tailstock Taper……….. #5 MT
Weight:………………. 7500 Lbs

EQUIPPED WITH:

12” – 3 Jaw Chuck
16” – 4 Jaw Chuck
(4) Way Tool Post
Chuck Guard
Full Length Splash Guard
Coolant System
3″ Steady Rest
Follow Rest
Inch/Metric Threading
Thread Dial
Halogen Light
Tool Box

MACHINE FEATURES:

3-1/8″ Spindle Hole
Hardened & Ground Gears & Bedways
Gap Bed
Forward/Reverse Matrix Disc Clutches
Adjustable Apron – Automatic Feed Kickout
Apron Controls Include Forward/Reverse
for Carriage & Cross Slide Feed
Full Length Foot Brake
Spindle Supported by (3) Tapered Roller Bearings
Automatic Forced Lubrication to Headstock
Safety Overload Feed Clutch

OPTIONAL ACCESSORIES … P.O.R. :

12” – 3 Jaw “Set Tru” Chuck
12” – 6 Jaw “Set Tru” Chuck
Taper Attachment
Lever Collet Attachment
5C Collet Set (1/8” x 1-1/8” x 1/16”)
Aloris Type Quick Chage Tool Post w/(5) Holders
Micro Carriage Stop
Face Plate
18N Jacobs “Ball Bearing” Chuck w/Arbor
#5 MT Live Center
Newall Digital Readout

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL: IMCO at 614-914-5087

F.O.B.:  Location

TERMS: Check w/Order

All prices subject to change without notice

SKU: 14064 Category: Lathes - Conventional
