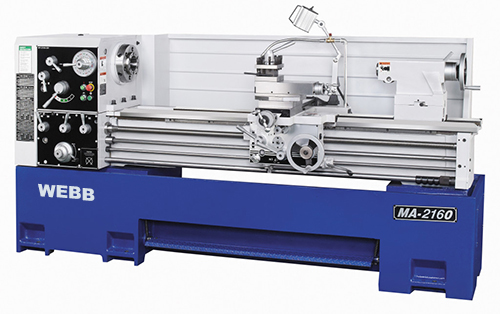

21" x 60" WEBB ... LATHE 3" SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 21″ x 60″ WEBB … LATHE 3″ SPINDLE HOLE
Previous product
21" x 40" WEBB ... LATHE 3" SPINDLE HOLE
21" x 40" WEBB ... LATHE 3" SPINDLE HOLE
Back to products
Next product
21" x 80" WEBB ... LATHE 3" SPINDLE HOLE
21" x 80" WEBB ... LATHE 3" SPINDLE HOLE

21″ x 60″ WEBB … LATHE 3″ SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: MA-2160
Type: Precision Geared Head
Year: New

SPECIFICATIONS:

Swing Over Bed……….. 21”
Swing Over Cross Slide… 14”
Swing in Gap…………. 26-3/4”
Dist. Between Centers…. 60”
Spindle Nose…………. D1-8
Spindle Hole…………. 3”
Bed Width……………. 13-1/2”
Spindle Speeds……….. (18) 25 – 1545 RPM
Threading……………. Inch/Metric
Motor Size…………… 10 HP – 220V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 6615 Lbs
Dimensions…………… To be Advised

EQUIPPED WITH:

Rear Chip Guard
Flood Coolant
Automatic Forced Lubrication
Longitudinal Adjustable Stop
Center Sleeve
(2) Dead Centers
Foot Brake
Operation & Parts Manuals

MACHINE FEATURES:

3″ Spindle Hole
“Heavy Duty” Meehanite Casting
Gap Bed Design
H & G Headstock Gears
H & G Bed Ways
Inch Metric Dials

OPTIONAL ACCESSORIES: P.O.R.

10″ – 3 Jaw Chuck
12″ – 3 Jaw Chuck
16″ – 4 Jaw Chuck
Upgrade to 15 HP
7.5 HP Inverter Head w/Constant Surface Speed
10 HP Inverter Head w/Constant Surface Speed
4″ Spinde Bore – A2-11 Mount
6″ Spindle Bore – A2-11 Mount
Follow Rest
20″ Face Plate
Taper Attachment
Micrometer Carriage Stop
Quick Change Tool Post w/(6) Holders
Full Length Splash Guard
Newall Digital Readout

“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER

Need a Part ?
Have a Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 14107 Category: Lathes - Conventional
