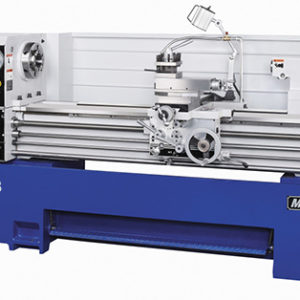

Model: MA-2140
Type: Precision Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 21”
Swing Over Cross Slide… 14”
Swing in Gap…………. 26-3/4”
Dist. Between Centers…. 40”
Spindle Nose…………. D1-8
Spindle Hole…………. 3”
Bed Width……………. 13-1/2”
Spindle Speeds……….. (18) 25 – 1545 RPM
Threading……………. Inch/Metric
Motor Size…………… 10 HP – 220V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 5955 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
Rear Chip Guard
Flood Coolant
Automatic Forced Lubrication
Longitudinal Adjustable Stop
Center Sleeve
(2) Dead Centers
Foot Brake
Operation & Parts Manuals
MACHINE FEATURES:
3″ Spindle Hole
“Heavy Duty” Meehanite Casting
Gap Bed Design
H & G Headstock Gears
H & G Bed Ways
Inch Metric Dials
OPTIONAL ACCESSORIES: P.O.R.
10″ – 3 Jaw Chuck
12″ – 3 Jaw Chuck
16″ – 4 Jaw Chuck
Upgrade to 15 HP
7.5 HP Inverter Head w/Constant Surface Speed
10 HP Inverter Head w/Constant Surface Speed
4″ Spinde Bore – A2-11 Mount
6″ Spindle Bore – A2-11 Mount
Follow Rest
20″ Face Plate
Taper Attachment
Micrometer Carriage Stop
Quick Change Tool Post w/(6) Holders
Full Length Splash Guard
Newall Digital Readout
