20" x 60" LeBLOND ... LATHE 3.149 SPINDLE HOLE
Click to enlarge
HomeLathes New and UsedLathes - Conventional 20″ x 60″ LeBLOND … LATHE 3.149 SPINDLE HOLE
Previous product
16" x 60" LeBLOND ... LATHE 2.1" SPINDLE HOLE
16" x 60" LeBLOND ... LATHE 2.1" SPINDLE HOLE
Back to products
Next product
20" x 40" LeBLOND ... LATHE 3.149" SPINDLE HOLE
20" x 40" LeBLOND ... LATHE 3.149" SPINDLE HOLE

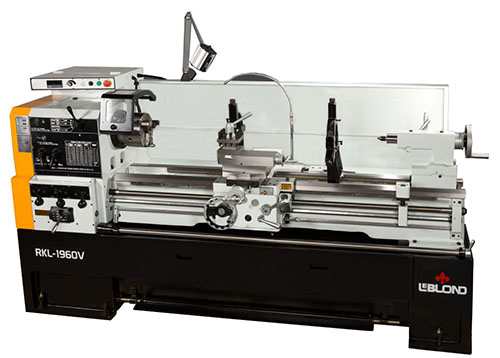

20″ x 60″ LeBLOND … LATHE 3.149 SPINDLE HOLE

In stock

Request Quote
This product is already in quote request list
Browse the list
  • Description
Description

Model: RKL-1900V
Type:  Electronic Variable Speed
Year: New

SPECIFICATIONS:

Headstock……………. Geared Head
​Swing Over Bed……….. 20”
Swing Over Cross Slide… 13.9”
Swing in Gap…………. 27.5”
Dist Between Centers….. 60”
Spindle Nose…………. D1-6
Spindle Hole…………. 3.149”
Bed Width……………. 12”
Spindle Speeds (12)…… 36 – 1800 RPM
Threading……………. Inch/Metric
Motor Size…………… 7.5 HP – 480V – 3 Phs
Tailstock Taper………. #4 MT
Gross Weight…………. 4850 Lbs
Dimensions…………… 114″(l) x 46″(w) x 75″(h)

EQUIPPED WITH:

(4) Way Toolpost
6″ Steady Rest w/Roller Jaws
3.5” Follow Rest w/Bronze Jaws
12″ Face Plate
Telescopic Taper Attachment
Full Length Splash Guard
Chuck Guard
Coolant System
Chip Pan
Brake Pedal
Halogen Work Light
Leveling Pads
Tool Box w/Tools
Operation & Parts Manual

MACHINE FEATURES

2.1″ Spindle Hole
H & G Gears & Bed Ways
Gap Bed
Spindle Supported by (3) Tapered Roller Bearings
Meehanite Casting Bed
Precision Ground Bed

OPTIONAL ACCESSORIES:

10″ – 3 Jaw Bison Chuck
12″ – 3 Jaw Bison Chuck
12″ – 4 Jaw “Steel” Bison Chuck
Taper Turning Attachment
Lever Collet Attachment
5C Collet Set (1/8″ – 1-1/8″ x 1/16″)
“Aloris Type” Quick Change Toolpost w/(5) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0″ – 1/2″ Capacity)
#4 MT Live Center
Newall Digital Readout

COMMENTS:

Need a Part?
Have a Techicnial Question?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS: Check w/Order

All prices subject to change without notice

SKU: 13047 Category: Lathes - Conventional
