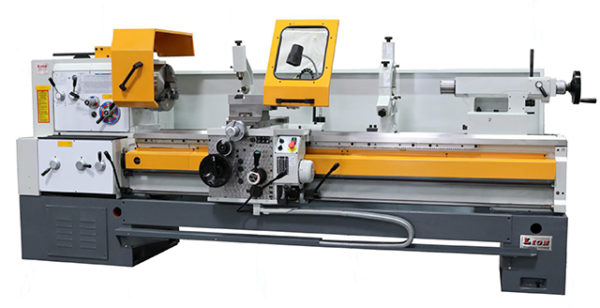

Model: 20157-MT
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock Type……….. Geared Head
Swing Over Bed……….. 20″
Swing Over Cross Slide… 11-3/4”
Swing in Gap…………. 30”
Dist Between Centers….. 157”
Spindle Nose…………. D1-8
Spindle Hole…………. 3.2”
Bed Width……………. 15-3/4”
Spindle Speeds(16)……. 11 -2000 RPM
Threading……………. Inch/Metric
Motor Size…………… 10 HP – 220V – 3 Phs
Tailstock Taper………. #5 MT
Weight………………. 9400 Lbs
Dimensions…………… 220″(l) x 52″(w) x 60″(h)
EQUIPPED WITH:
10″ – 3 Jaw Chuck
15-3/4″ – 4 Jaw Chuck
Safety Guard for Chuck (will Accommodate 4 Jaw Chuck)
6″ Steady Rest w/Rollers
Oil Pressure Sight Glasses
Splash-Chip Guard
Taper Attachment
Follow Rest
Work Light
Leveling Screws
Inch/Metric Dials
Coolant Pump
MACHINE FEATURES
3.2″ Spindle Hole
“Heavy Duty” Stock Removal
NOTE: “Monoblock” Solid Cast Bed & Legs
Gap Bed Design
H & G Headstock Gears
H & G Bed Ways
Inch Metric w/o Change of Gears
(4) Way Rapid Traverse
Precision SKF Spindle Bearings
Tag Along Tailstock (for Power Drilling/Boring)
“Double Multi Disc Clutch & Brake
Override Safety Clutch
Direct Reading Cross Slide Dial
Cut Away in Ways for Coolant
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
12” – 3 Jaw Chuck (Semi-Steel)
16” – 3 Jaw Chuck (Semi-Steel)
16” – 4 Jaw Chuck (Steel)
18” Face Plate
12” Steady Rest w/Rollers
Taper Attachment
Aloris Quick Change Toolpost Set
(2) Axis Newall Digital Readout (Installed)
COMMENTS: Mfg. in Europe
