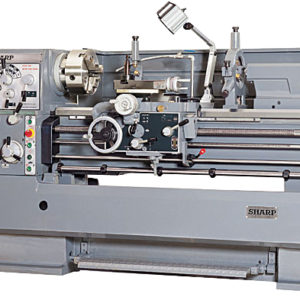

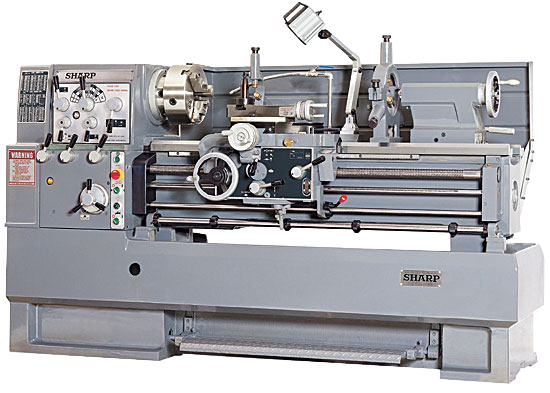

Model: 1880-L
Type: Geared Head
Year: New
SPECIFICATIONS:
Headstock…………….. Geared Head
Swing Over Bed………… 18.5”
Swing Over Cross Slide…. 10.5”
Swing In Gap………….. 26.5”
Dist. Between Centers….. 80”
Spindle Nose………….. D1-8
Spindle Hole………….. 3-1/16”
Bed Width…………….. 11.75”
Spindle Speeds(12)…….. 40 – 2000 RPM
Threading…………….. Inch/Metric
Motor Size……………. 7.5 HP – 220/440V – 3 Phs
Tailstock Taper……….. #4 MT
Weight……………….. 5300 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
10″ – 3 Jaw Chuck
Coolant System
Full Length Splash Guard
(1/2″ – 6″) Steady Rest
16″ Face Plate
Follow Rest
Longitudinal Carriage Stops
Halogen Work Light
Tool Kit & Manuals
MACHINE FEATURES:
3-1/16″ Spindle Hole
Gap Bed Design
H & G Head Stock Gears
H & G Bedways
(1) Piece Cast Meehanite Bed
OPTIONAL ACCESSORIES:
12″ – 3 Jaw BTC Chuck (In Lieu of 10” Standard)
12″ – 3 Jaw BTC Chuck
12″ – 4 Jaw BTC Chuck
10″ – 3 Jaw Bison Chuck
12″ – 3 Jaw Bison Chuck
16″ – 3 Jaw Bison Chuck
12″ – 4 Jaw Bison Chuck
16″ – 4 Jaw Bison Chuck
Chuck Guard
Micrometer Carriage Stop
(4) Way Toolpost
Taper Attachment
Roller Jaws for Steady Rest
(1/2″ – 6″) Steady Rest
(4″ – 9″) Steady Rest
5C Collet Set (1/8″ – 1-1/8″ x 1/16″)
5C Collet Closer
“Aloris Type” Quick Change Toolpost w/(7) Holders
14N Jacobs “Ball Bearing” Chuck w/Arbor (0″ – 1/2″ Capactiy)
#4 MT Live Center
Newall Digital Readout
“U.S.A.” IMPORT – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
