72" x 120" FLOW MACH 3 ... WATER JET
Click to enlarge
Home Water Jets - New and Used 72″ x 120″ FLOW MACH 3 … WATER JET
14" x 40" CUTMASTER ... LATHE 1-1/2" SPINDLE HOLE
14" x 40" CUTMASTER ... LATHE 1-1/2" SPINDLE HOLE
Back to products

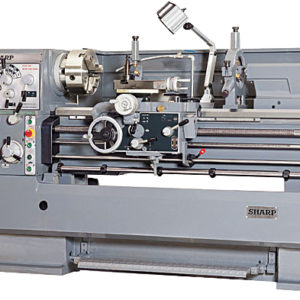

18" x 80" SHARP ... LATHE 3-1/16" SPINDLE HOLE
18" x 80" SHARP ... LATHE 3-1/16" SPINDLE HOLE

72″ x 120″ FLOW MACH 3 … WATER JET

In stock

Compare
Add to wishlist
Request Quote
This product is already in quote request list
Browse the list
Description

THE “WATER JET CAPITAL”

Model:  M3-3020b

Type:  Open Gantry Design

Year:  New

SPECIFICATIONS:

Control: ……………….. Flowmaster PC-Based CNC
Work Area ………………. 6’6″ x 10’2″
Pressure ……………….. 60,000 PSI
Travels:
                  (X) Axis .. 6’6″
                  (Y) Axis .. 10’2”
                  (Z) Axis .. 7”

X And Y Linear Positional … +/-.0015” / 3’
Repeatability …………… +/-.002”
Motor ………………….. 50 HP
Rapid Traverse ………….. 500 IPM
Contouring ……………… 300 IPM

EQUIPPED WITH :

Flowmaster PC-Based CNC Control
Ball Screw (Stationary) Ball Nut Rotates Around Ball Screw
50 HP 60,000 PSI HyPlex Direct Drive Pump
Paser ECL Plus Cutting System
Ultrapiece Vacuum
Dynamic Contour Follower
Flow Advantage Program
Start-Up Supervision, Installation, And Training

OPTIONAL ACCESSORIES AVAILABLE … P.O.R.

6’-6″ x 13′-1″ Table
Dynamic Waterjet (Taper Compensation)
Hyperjet 94 i-S (94,000 PSI)
Spare Parts Package (60K PSI) Includes:

Flowjet Orifice Mount Assembly; Pacer ECL (Qty 10)
ECL Premium Mixing Tubes; Pacer ECL (Qty 2)
80 Mesh Garnet (1 Metric Ton = 2,204 LBS)
Recommended Consumable Parts Kit

Spare Parts Package (94K PSI) Includes:

Flowjet Orifice Mount Assembly; Pacer ECL (Qty 10)
ECL Premium Mixing Tubes; Pacer ECL (Qty 2)
80 Mesh Garnet (1 Metric Ton = 2,204 LBS)
Recommended Consumable Parts Kit
94I Swivel Rebuild Kit

Waterveyor Abrasive Removal System
(1) Additional Year Warranty
Flownest Part Nesting Software

COMMENTS:  Mfg. in U.S.A.

“USA”  IMPORTER  – DISTRIBUTION & PARTS CENTER

Need A Part ?
Have A Technical Question ?

CALL:  IMCO at 614-914-5087

F.O.B.:  Location

TERMS:  Check w/Order

All prices subject to change without notice

SKU: 9514 Category: Water Jets - New and Used
